POWER SUPPLIES
-
Visit product page →12V 1A AC/DC Power Adapter for LED Lights, DC Jack, US Plug, UL certified. Great for LED Under Cabinet lights, LED Strips and other LED applications
Input Voltage 100-240V Output 12V, 12W, 1A Connector Diameter inside: 2.1mm, outside 5.5mm SKU 12V1A-LED-CAB -
vLEDQuant
12V 6A AC/DC Power Adapter with 3-Prong Plug for 3528 5050 RGB SMD LED Strips
$29.99 $23.99
Visit product page →AC/DC Power Adapter for 5050, 3528 RGB LED Strips, UL certified, 3-Prong US Plug
Input Voltage 100-240V Output 12V, 72W, 6A Connector Diameter inside: 2.5mm, outside 5.5mm Applications 5050 & 3528 SMD LED Strips -

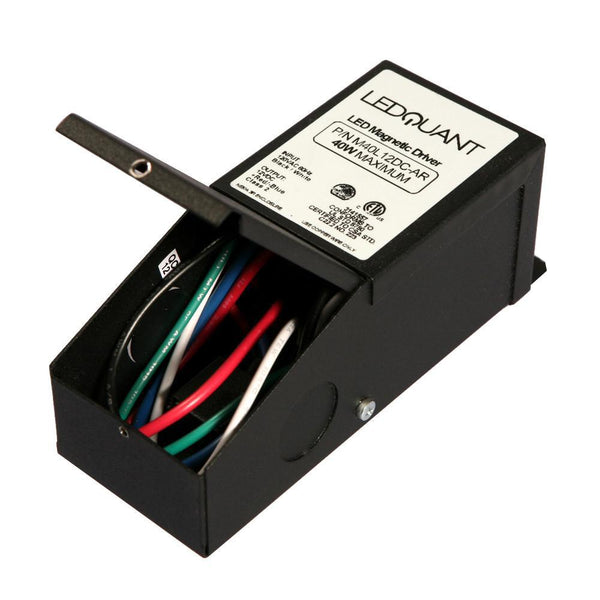

Visit product page →LEDQuant's M12V-40W-DC is one of the most compact LED drivers on the market with a magnetic transformer core. It is equipped with auto-reset breakers, one on the input and one on the output, which protect both the load and driver. The driver is encased in a coated metal box that includes 2 knock-outs on the bottom to enable easy installation that complies with electrical code requirements.
SKU Number M12V-40W-DC Applications Dimmable or non-dimmable LEDs, LED fixtures, LED panels, LED strip lights Max Load 40W Input Voltage 120V AC 60Hz Output Voltage 11.4V-12.5V DC Output Current 3.19A Efficiency 87.50% Length 5.03" Width 2.14" Depth 2.00" Features Acoustic humming and buzzing free, Auto-reset circuit breakers on the input and output Certifications ETL, CSA Other Compliance UL Standard 5085-1 Shipping Weight 4 pounds
Dimmers Compatibility Low-voltage TRIAC dimmers (list available)
Â
-
Visit product page →LEDQuant's M24V-40W-DC is one of the most compact LED drivers on the market with a magnetic transformer core. It is equipped with auto-reset breakers, one on the input and one on the output, which protect both the load and driver. The driver is encased in a coated metal box that includes 2 knock-outs on the bottom to enable easy installation that complies with electrical code requirements.
SKU Number M24V-40W-DC Applications Dimmable or non-dimmable LEDs, LED fixtures, LED panels, LED strip lights Max Load 40W Input Voltage 120V AC 60Hz Output Voltage 22.3V-24.5V DC Output Current 1.72A Efficiency 82% Length 5.03" Width 2.14" Depth 2.00" Features Acoustic humming and buzzing free, Auto-reset circuit breakers on the input and output Certifications ETL, CSA Other Compliance UL Standard 5085-1 Shipping Weight 4 pounds
Dimmers Compatibility Low-voltage TRIAC dimmers (list available)
Â
-

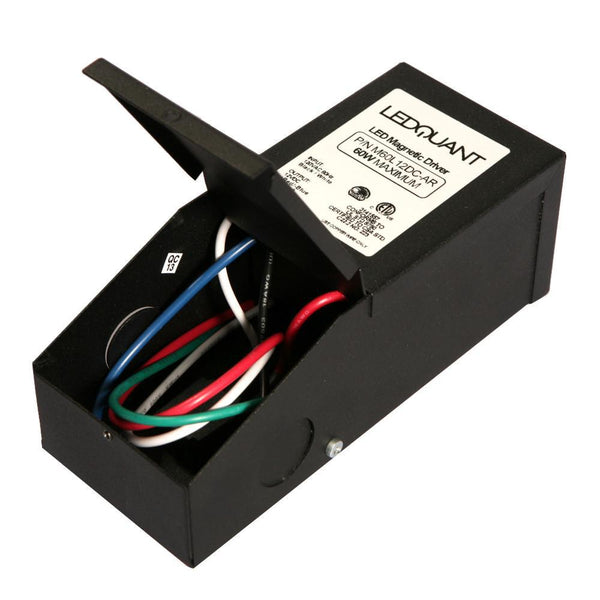

Visit product page →LEDQuant's M12V-60W-DC is one of the most compact LED drivers on the market with a magnetic transformer core. It is equipped with auto-reset breakers, one on the input and one on the output, which protect both the load and driver. The driver is encased in a coated metal box that includes 2 knock-outs on the bottom to enable easy installation that complies with electrical code requirements.
SKU Number M12V-60W-DC Applications Dimmable or non-dimmable LEDs, LED fixtures, LED panels, LED strip lights Max Load 60W Input Voltage 120V AC 60Hz Output Voltage 11.4V-12.5V DC Output Current 4.8A Efficiency 89.20% Length 6.06" Width 2.59" Depth 2.20" Features Acoustic humming and buzzing free, Auto-reset circuit breakers on the input and output Certifications ETL, CSA Other Compliance UL Standard 5085-1 Shipping Weight 4 pounds
Dimmers Compatibility Low-voltage TRIAC dimmers (list available)
Â
-
Visit product page →LEDQuant's M12V-100W-DC is one of the most compact LED drivers on the market with a magnetic transformer core. It is equipped with auto-reset breakers, one on the input and one on the output, which protect both the load and driver. The driver is encased in a coated metal box that includes 2 knock-outs on the bottom to enable easy installation that complies with electrical code requirements.
SKU Number M12V-100W-DC Applications Dimmable or non-dimmable LEDs, LED fixtures, LED panels, LED strip lights Max Load 100W Input Voltage 120V AC 60Hz Output Voltage 11.4V-12.5V DC Output Current 8.05A Efficiency 87.20% Length 9.17" Width 3.06" Depth 2.94" Features Acoustic humming and buzzing free, Auto-reset circuit breakers on the input and output Certifications ETL, CSA Other Compliance UL Standard 5085-1 Shipping Weight 6 pounds
Dimmers Compatibility Low-voltage TRIAC dimmers (list available)
-

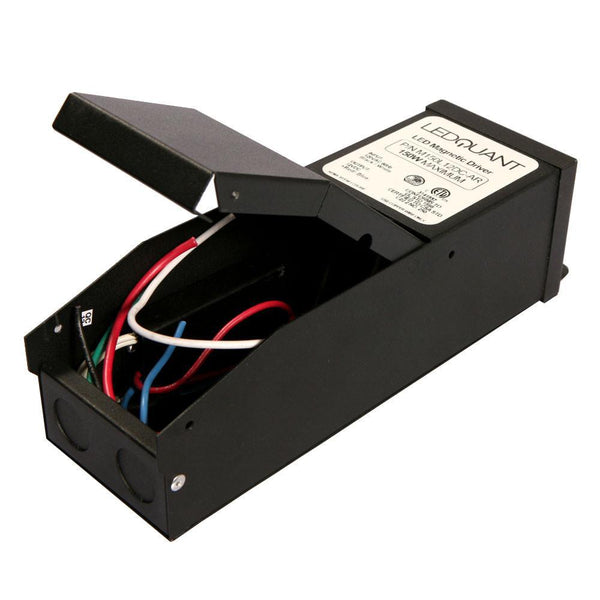

Visit product page →LEDQuant's M12V-150W-DC is one of the most compact LED drivers on the market with a magnetic transformer core. It is equipped with auto-reset breakers, one on the input and one on the output, which protect both the load and driver. The driver is encased in a coated metal box that includes 2 knock-outs on the bottom to enable easy installation that complies with electrical code requirements.
SKU Number M12V-150W-DC Applications Dimmable or non-dimmable LEDs, LED fixtures, LED panels, LED strip lights Max Load 150W Input Voltage 120V AC 60Hz Output Voltage 11.4V-12.5V DC Output Current 12.35A Efficiency 85.20% Length 9.17" Width 3.06" Depth 2.94" Features Acoustic humming and buzzing free, Auto-reset circuit breakers on the input and output Certifications ETL, CSA Other Compliance UL Standard 5085-1 Shipping Weight 6 pounds
Dimmers Compatibility Low-voltage TRIAC dimmers (list available)
-
Visit product page →LEDQuant's M24V-150W-DC is one of the most compact LED drivers on the market with a magnetic transformer core. It is equipped with auto-reset breakers, one on the input and one on the output, which protect both the load and driver. The driver is encased in a coated metal box that includes 2 knock-outs on the bottom to enable easy installation that complies with electrical code requirements.
SKU Number M24V-150W-DC Applications Dimmable or non-dimmable LEDs, LED fixtures, LED panels, LED strip lights Max Load 150W Input Voltage 120V AC 60Hz Output Voltage 22V-24.4V DC Output Current 13.3A Efficiency 85% Length 9.17" Width 3.06" Depth 2.94" Features Acoustic humming and buzzing free, Auto-reset circuit breakers on the input and output Certifications ETL, CSA Other Compliance UL Standard 5085-1 Shipping Weight 6 pounds
Dimmers Compatibility Low-voltage TRIAC dimmers (list available)
