$87.49 $69.99
$87.49 $69.99
Usually ships in 1-3 Business Days
FREE Shipping & Returns

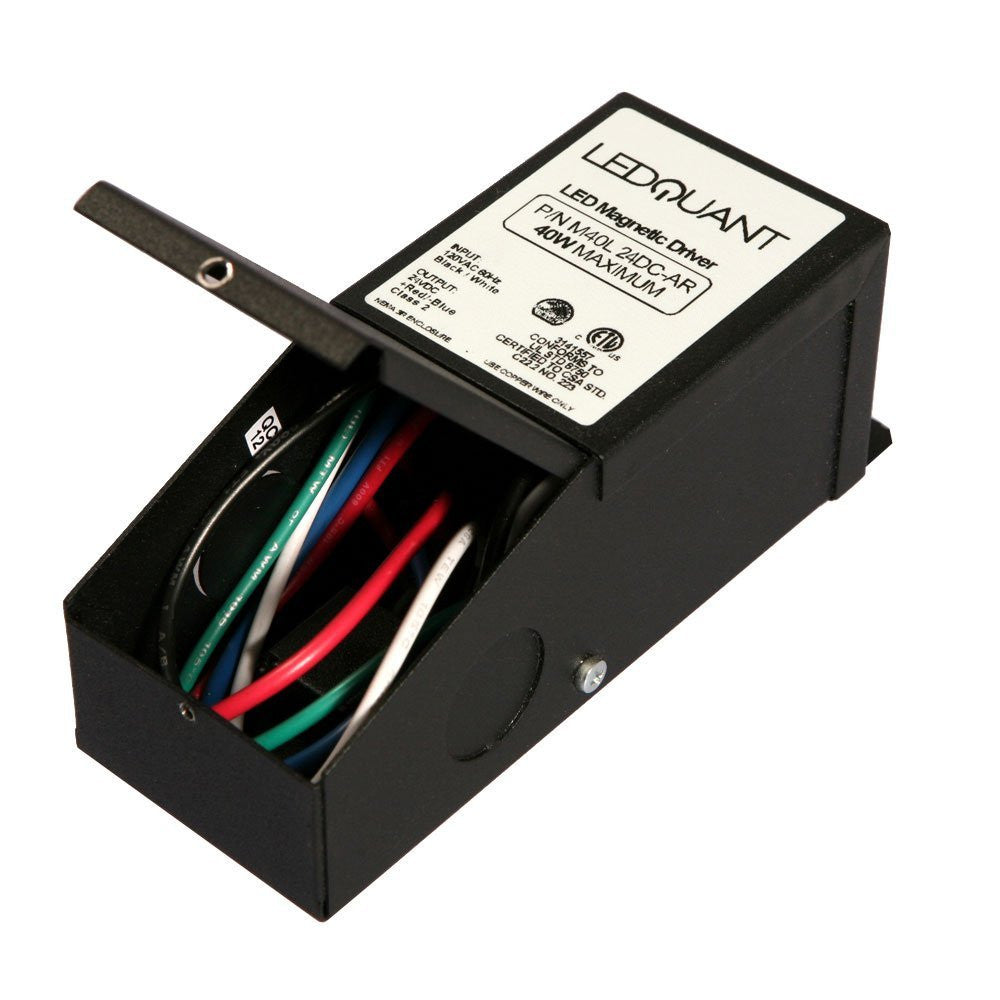

LEDQuant's M24V-40W-DC is one of the most compact LED drivers on the market with a magnetic transformer core. It is equipped with auto-reset breakers, one on the input and one on the output, which protect both the load and driver. The driver is encased in a coated metal box that includes 2 knock-outs on the bottom to enable easy installation that complies with electrical code requirements.
| SKU Number | M24V-40W-DC |
| Applications | Dimmable or non-dimmable LEDs, LED fixtures, LED panels, LED strip lights |
| Max Load | 40W |
| Input Voltage | 120V AC 60Hz |
| Output Voltage | 22.3V-24.5V DC |
| Output Current | 1.72A |
| Efficiency | 82% |
| Length | 5.03" |
| Width | 2.14" |
| Depth | 2.00" |
| Features | Acoustic humming and buzzing free, Auto-reset circuit breakers on the input and output |
| Certifications | ETL, CSA |
| Other Compliance | UL Standard 5085-1 |
| Shipping Weight |
4 pounds |
| Dimmers Compatibility |
Low-voltage TRIAC dimmers (list available) |
Â
12V 1A AC/DC Power Adapter for LED Lights, DC Jack, US Plug, UL certified. Great for LED Under Cabinet lights, LED Strips and other LED applications
| Input Voltage | 100-240V |
| Output | 12V, 12W, 1A |
| Connector Diameter | inside: 2.1mm, outside 5.5mm |
| SKU | 12V1A-LED-CAB |
LEDQuant
12V 6A AC/DC Power Adapter with 3-Prong Plug for 3528 5050 RGB SMD LED Strips
$29.99 $23.99
AC/DC Power Adapter for 5050, 3528 RGB LED Strips, UL certified, 3-Prong US Plug
| Input Voltage | 100-240V |
| Output | 12V, 72W, 6A |
| Connector Diameter | inside: 2.5mm, outside 5.5mm |
| Applications | 5050 & 3528 SMD LED Strips |
LEDQuant's M12V-40W-DC is one of the most compact LED drivers on the market with a magnetic transformer core. It is equipped with auto-reset breakers, one on the input and one on the output, which protect both the load and driver. The driver is encased in a coated metal box that includes 2 knock-outs on the bottom to enable easy installation that complies with electrical code requirements.
| SKU Number | M12V-40W-DC |
| Applications | Dimmable or non-dimmable LEDs, LED fixtures, LED panels, LED strip lights |
| Max Load | 40W |
| Input Voltage | 120V AC 60Hz |
| Output Voltage | 11.4V-12.5V DC |
| Output Current | 3.19A |
| Efficiency | 87.50% |
| Length | 5.03" |
| Width | 2.14" |
| Depth | 2.00" |
| Features | Acoustic humming and buzzing free, Auto-reset circuit breakers on the input and output |
| Certifications | ETL, CSA |
| Other Compliance | UL Standard 5085-1 |
| Shipping Weight |
4 pounds |
| Dimmers Compatibility |
Low-voltage TRIAC dimmers (list available) |
Â
LEDQuant's M12V-60W-DC is one of the most compact LED drivers on the market with a magnetic transformer core. It is equipped with auto-reset breakers, one on the input and one on the output, which protect both the load and driver. The driver is encased in a coated metal box that includes 2 knock-outs on the bottom to enable easy installation that complies with electrical code requirements.
| SKU Number | M12V-60W-DC |
| Applications | Dimmable or non-dimmable LEDs, LED fixtures, LED panels, LED strip lights |
| Max Load | 60W |
| Input Voltage | 120V AC 60Hz |
| Output Voltage | 11.4V-12.5V DC |
| Output Current | 4.8A |
| Efficiency | 89.20% |
| Length | 6.06" |
| Width | 2.59" |
| Depth | 2.20" |
| Features | Acoustic humming and buzzing free, Auto-reset circuit breakers on the input and output |
| Certifications | ETL, CSA |
| Other Compliance | UL Standard 5085-1 |
| Shipping Weight |
4 pounds |
| Dimmers Compatibility |
Low-voltage TRIAC dimmers (list available) |
Â
