COMMERCIAL LIGHTING

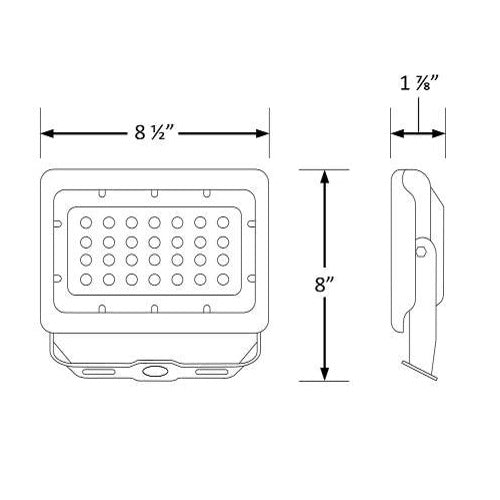

The CLMAL series is a group of premium architectural multi-purpose LED area luminaires designed to illuminate parking areas, pathways, building facades, loading docks, and a wide variety of other large, general site lighting applications. Multiple mounting options make the CLMAL a versatile luminaire for flood lighting, pole-, ground- and wall-mounted are lighting, and other outdoor lighting requirements.


 FEATURES
• Available in 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide 372,000 hours of operation with at least 70% of initial lumen output (L70)**
• Available models provide from 9,816 to 18,408 lumens, and from 117 to 131 lumens per watt (LPW)*
• IES roadway photometric distributions include types II-V
• NEMA floodlight distributions include very narrow (3H x 3V), medium narrow (4H x 4V), medium wide (5H x 5V) & very wide (7H x 7V)
• Universal 120-277 AC voltage (50-60Hz) is standard
• Power factor > 0.90
• Total harmonic distortion < 20%
• Color rendering index > 80
• Optional glare shields (full & half) & wire guards are available
• Optional NEMA photocell installation kit provides watertight photocell attachment to driver enclosure clover
• Die cast aluminum housing with durable, dark bronze powder coat finish—at least 2 mils thick on all surfaces—and a heatresistant polycarbonate lens
• Driver enclosure is sealed with a water-tight, silicone rubber gasket
• Effective projected areas (EPA’s) are:
- Front = 0.24 square feet
- Side = 0.29 square feet
- Face = 1.10 square feet
• Easy installation in new construction or retrofit applications


* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours.

 WARRANTY & LISTINGS

• cULus listed for wet locations in ambient temperatures from -20°C to 45°C (-4°F to 113°F)
• IP66 rated for ingress protection
• DLC premium approved
• Flicker-free per IEEE1789-2015 (no observable adverse effects of flicker at 100% light output level)
• Lens is IK 9 rated for protection from external impacts
• Salt fog tested for 1,000 hours (ASTM B117). After salt fog testing, paint rated at 9 per ASTM D1654-05 scratch test
• Complies with FCC Part 15, class B
• Complies with EN61000-4-5, surge immunity protection (6kV)
• 5-Year Warranty of all electronics and housing

Specification Sheet

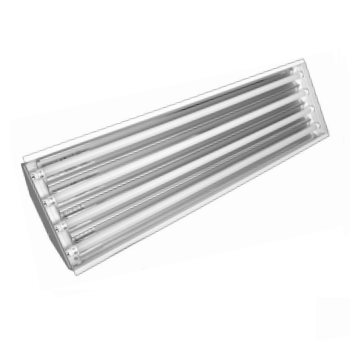

The WTA series LED linear light is ideal for replacement of fluorescent lights or new installation. The fixture comes in 3500K, 4000K, and 5000K CCT and has efficacy up to 130Lm/W. The fixture provides well-distributed illumination. Specifically designed for critical facilities the WTA series linear light and emergency driver are FCC Part 15B certified. Lifespan: 50,000 hrs Mounting: Surface and suspended

ELECTRICAL

Power: 40W, 68W

Efficacy: 130 lm/W

CRI > 80

CCT: 3500K, 4000K, 5000K

Operating voltage: 120-277V AC

Dimming: 0-10V

Power factor > 0.9

OPTICS / FINISH

Beam angle: 120°

Steel housing

Frosted acrylic lens

White finish

Linkable: Yes

WARRANTY

5-years warranty

Specification Sheet

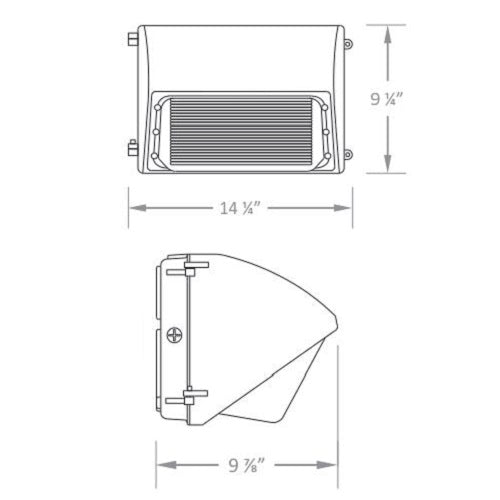

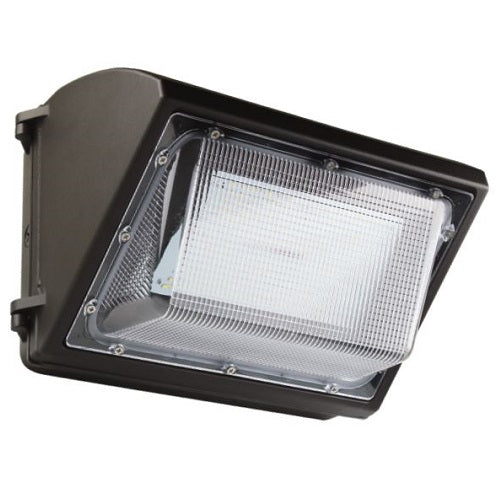

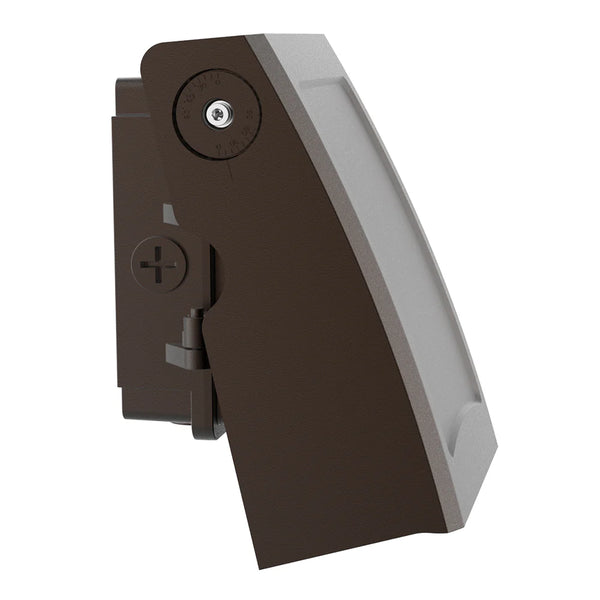

The CLWP-60 Series is a rugged, durable LED wall pack that provides full adjustability of the LED module, so light can be focused up, down, or anything in between. It is perfect for outdoor perimeter and area lighting. With a die cast aluminum housing and a polycarbonate lens, the CLWP-60 Series will stand up to many years of punishing environmental conditions. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID wall packs.

  FEATURES

• Available in 4000k (neutral white) and 5000k (cool white) color temperature.*
• Long-life LEDs provide 61,000 hours of operation with at least 70% of initial lumens output (L70).**
• Uniform illumination with no visible LED pixilation.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index > 70.
• Die cast aluminum housing with durable, dark bronze, powder coat paint.
• Polycarbonate lens with seamless, silicone gasket to prevent leaks.
• Easy installation in new construction or retrofit.

  WARRANTY/LISTING

• cULus listed for wet locations (-20°C to 40°C / -4°F to 113°F)
• DLC Premium approved
• IP65 rated
• Complies with FCC Part 15, class B.
• Complies with EN61000-4-5, surge immunity (1kV minimum)
• 5-year warranty of all electronics and housing

Specification Sheet

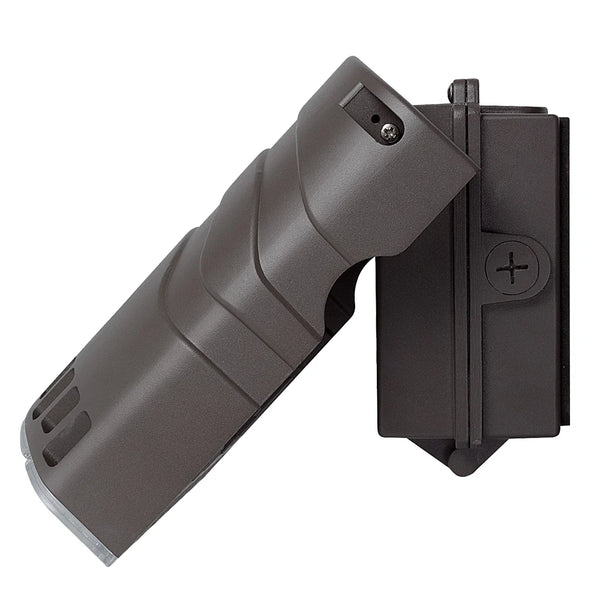

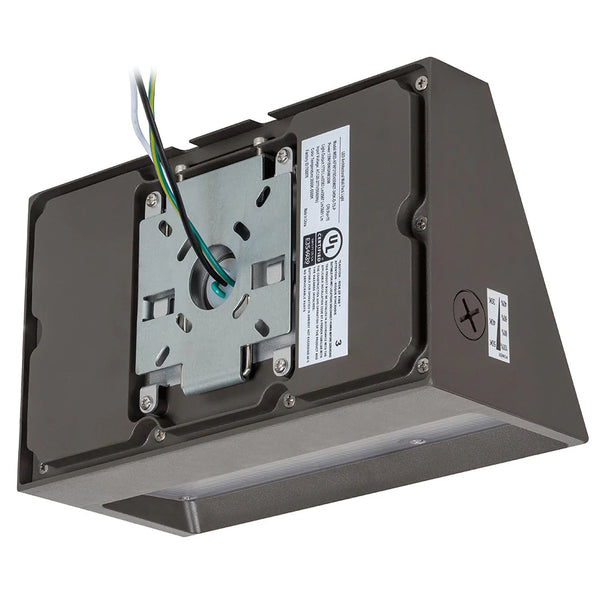

Selectable LED Architectural Wall Pack Lighting series can be widely used in indoor or outdoor lighting (wet location). Excellent for museums, art galleries, shopping malls, office buildings, walls and many other applications.

12Vdc Auxiliary Dimming

Power: 48W / 72W / 96W / 120W
Input: AC 277-480V
CCT: 4000K / 5000K
Output: 7800 LM/11288 LM/14627 LM/18550 LM
Type of lighting： T3 / T4 / T5

Factory Default Parameters:
Power: 120W
CCT：4000K
Type of lighting: T4
Driver: KERHAM

The CLHB-RD-200 is a round LED high bay luminaire, which is designed to illuminate a wide variety of settings, including commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a die cast aluminum housing and polycarbonate lens, the CLHB-RD-200 provides durability and high performance. Highefficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID high bays.

 FEATURES
▪ Available in 4000k (neutral white) and 5000k (cool white) color temperatures.*
▪ Long-life LEDs provide 81,000 hours of operation with at leas t 70% of initial lumen output (L 70).**
▪ CLHB-RD-200 provides 24,816 lumens (126 lumens per watt, LPW) at 4000k, and 25,042 lumens (127 LPW) at 5000k.*
▪ Universal 120-277 AC voltage (50-60Hz) is standard. Step down transformers are required for 347-480V applications.
▪ 0-10vdc dimming drivers are standard.
▪ Watertight, compression-type electrical connectors prevent moisture intrusion.
▪ Standard mounting bracket and optional mounting accessories provide ceiling and conduit mounting, and up to 100° of adjustability.
▪ Optional wet-location junction box & bracket (SEE HIGH BAY ACCESSORIES) attaches to luminaire housing, and simplifies wiring connections in wet locations.
▪ Optional Merrytek occupancy sensor (IP65 rated) and junction box assembly provides a factory-ready, fully-wired luminaire & control package.
▪ Power factor > 0.90.
▪ Total harmonic distortion < 20%.
▪ Color rendering index > 80.
▪ Painted die cast aluminum housing.
▪ Easy installation in new construction or retrofit.

* Contact factory for other color temperatures and lumen packages.
** L 70 hours are IES TM-21-11 calculated hours.

Specification Sheet

• INSTANT SAVINGS - Reduce your electricity usage with an LED light panel that only uses 36W of power
• HIGH EFFICIENCY Each 2 x 2 FT panel LED light fixture provides optimal lighting with 4000 lumens
• Dimmable - Take control of your lighting needs with the ability to reduce from 100% to 10% lighting output
• REBATE ELIGIBLE - Get a return on investment with our 2x2 troffer LED panel lights which are DLC Listed!
• COLOR TEMPERATURE - 3500K
• SPECIFICATIONS - 36W, 4000 Lumens, 24x24 IN Flat Panel LED Light, Dimmable 0-10V, 120° Beam Angle, Direct Wiring, UL Listed, DLC Listed, Rectangle Ceiling Light, 50,000 Hour Lifetime, 5-YEAR WARRANTY

Spec Sheet

We offer quantity discounts. Please inquire : sales@ledquant.com

The CLHB-RD-240 is a round LED high bay luminaire, which is designed to illuminate a wide variety of settings, including commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a die cast aluminum housing and polycarbonate lens, the CLHB-RD-240 provides durability and high performance. Highefficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID high bays.

 FEATURES
▪ Available in 4000k (neutral white) and 5000k (cool white) color temperatures.*
▪ Long-life LEDs provide 81,000 hours of operation with at leas t 70% of initial lumen output (L 70).**
▪ CLHB-RD-240 provides 29,412 lumens (124 lumens per watt, LPW) at 4000k, and 29,628 lumens (124 LPW) at 5000k.*
▪ Universal 120-277 AC voltage (50-60Hz) is standard. Step down transformers are required for 347-480V applications.
▪ 0-10vdc dimming drivers are standard.
▪ Watertight, compression-type electrical connectors prevent moisture intrusion.
▪ Standard mounting bracket and optional mounting accessories provide ceiling and conduit mounting, and up to 100° of adjustability.
▪ Optional wet-location junction box & bracket (SEE HIGH BAYS ACCESSORIES) attaches to luminaire housing, and simplifies wiring connections in wet locations.
▪ Optional Merrytek occupancy sensor (IP65 rated) and junction box assembly provides a factory-ready, fully-wired luminaire & control package.
▪ Power factor > 0.90.
▪ Total harmonic distortion < 20%.
▪ Color rendering index > 80.
▪ Painted die cast aluminum housing.
▪ Easy installation in new construction or retrofit.

* Contact factory for other color temperatures and lumen packages.
** L 70 hours are IES TM-21-11 calculated hours.

Specification Sheet

The CLHB-IB-200 is an LED I-Beam high bay luminaire designed to illuminate commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a painted, steel housing, the CLHB-IB-200 provides durability and high performance. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HIB high bays.

 FEATURES
• Available in 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide 122,000 hours of operation with at least 70% of initial lumen output (L70).**
• Delivers 27,820 lumens from 160 watts input (200 lumens per watt) at both 4000k & 5000k.*
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index > 80.
• Painted steel housing.
• Options include pendant-mounting kits, surface-mounting kits, diffused lenses, and steel wire-guard kits.
• Easy installation in new construction or retrofit.

*Contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours.

 WARRANTY/LISTING
• cETLus listed to applicable U.L. standards. Listed for damp locations. Suitable for ambient temperatures from -20°C to 50°C (-4°F to 122°F).
• DLC premium approved.
• Complies with FCC Part 15, class A.
• Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
• Complies with RoHS (Restriction on Hazardous Substances) requirements.
• 5-year warranty of all electronics and housing.

Specification Sheet

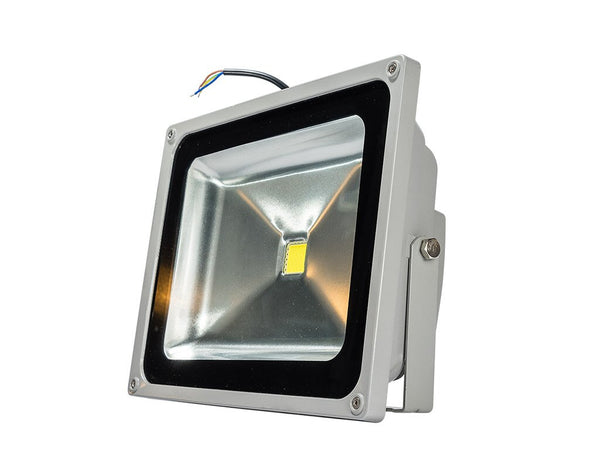

20 Watt LED Outdoor Flood Light, Cool White, Energy Efficient. Reduced energy consumption by up to 80%. 2 year guarantee.

The CLHB-LF-265 is a full-body, premium-performance LED high bay luminaire. It is designed to illuminate a wide variety of settings, including commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a painted, steel housing, the CLHB-LF-265 provides durability and high performance. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID high bays.

The CLHB-LF-320 is a full-body, premium-performance LED high bay luminaire. It is designed to illuminate a wide variety of settings, including commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a painted, steel housing, the CLHB-LF-320 provides high levels of durability and performance. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID high bays.

 FEATURES

• Available in 4000k (neutral white) and 5000k (cool white) color temperatures.*

• Long-life LEDs provide 122,000 hours of operation with at least 70% of initial lumens output (L70).**

• Delivers 44,298 lumens (138 lumens per watt, LPW) at 4000k, and 44,490 lumens (140 LPW) at 5000k.*

• Universal 120-277 AC voltage (50-60Hz) is standard. Step-down transformers are required for 347-480V applications.

• 0-10vdc dimming drivers are standard.

• Power factor > 0.90.

• Total harmonic distortion < 20%

• Color rendering index > 80.

• Painted steel housing.

• Easy installation in new construction or retrofit.

• Chain-mount kits (includes v-hooks and ⅛“ thick, 1-meter long chain) are standard.

• Options include lenses (clear & diffused), wire-guard kits, surface-mounting kits, pendant-mounting kits, and cable-mounting kits.

* contact factory for other color temperatures and lumen packages.

**L70 hours are IES TM-21-11 calculated hours.

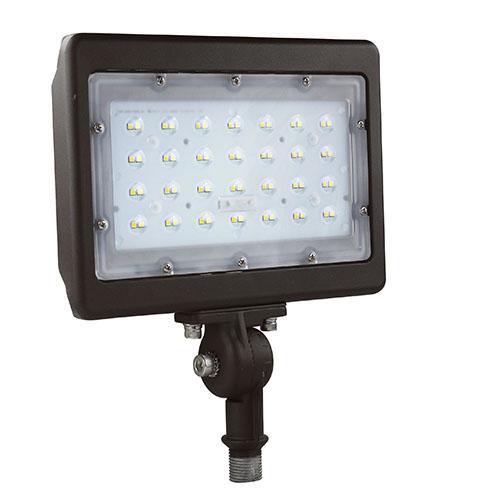

The CLMAL series is a group of premium architectural multi-purpose LED area luminaires designed to illuminate parking areas, pathways, building facades, loading docks, and a wide variety of other large, general site lighting applications. Multiple mounting options make the CLMAL a versatile luminaire for flood lighting, pole-, ground- and wall-mounted are lighting, and other outdoor lighting requirements.

 FEATURES
• Available in 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide 372,000 hours of operation with at least 70% of initial lumen output (L70).**
• Available models provide from 27,944 to 36,542 lumens, and from 117 to 131 lumens per watt (LPW).*
• IES roadway photometric distributions include types II-V.
• NEMA floodlight distributions include very narrow (3H x 3V), medium narrow (4H x 4V), medium wide (5H x 5V) & very wide (7H x 7V).
• Universal 120-277 AC voltage (50-60Hz) is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index > 80.
• Optional glare shields (full & half) & wire guards are available.
• Optional NEMA photocell installation kit provides watertight photocell attachment to driver enclosure clover.
• Die cast aluminum housing with durable, dark bronze powder coat finish—at least 2 mils thick on all surfaces—and a heat-resistant polycarbonate lens.
• Driver enclosure is sealed with a water-tight, silicone rubber gasket.
• Effective projected areas (EPA’s) are:
- Front = 0.33 square feet
- Side = 0.49 square feet
- Face = 2.14 square feet
• Easy installation in new construction or retrofit applications.

* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours.

 WARRANTY & LISTINGS
▪ cULus listed for wet locations in ambient temperatures from - 20°C to 45°C (-4°F to 113°F)
▪ IP66 rated for ingress protection
▪ DLC premium approved
▪ Flicker-free per IEEE1789-2015 (no observable adverse effects of flicker at 100% light output level)
▪ Rated for 3G vibration
▪ Lens is IK 9 rated for protection from external impacts
▪ Salt fog tested for 1,000 hours (ASTM B117). After salt fog testing, paint rated at 9 per ASTM D1654-05 scratch test
▪ Complies with FCC Part 15, class B
▪ Complies with EN61000-4-5, surge immunity protection (6kV)
▪ 5-Year Warranty of all electronics and housing

Specification Sheet

The CLHB-LF-425 is a full-body, premium-performance LED high bay luminaire. It is designed to illuminate a wide variety of settings, including commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a painted, steel housing, the CLHB-LF-425 provides high levels of durability and performance. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID high bays.

 FEATURES

• Available in 4000k (neutral white) and 5000k (cool white) color temperatures.*

• Long-life LEDs provide 113,000 hours of operation with at least 70% of initial lumens output (L70).**

• Delivers 57,439 lumens (135 lumens per watt, LPW) at 4000k, and 57,451 lumens (135 LPW) at 5000k.*

• Universal 120-277 AC voltage (50-60Hz) is standard. Step-down transformers are required for 347-480V applications.

• 0-10vdc dimming drivers are standard.

• Power factor > 0.90.

• Total harmonic distortion < 20%

• Color rendering index > 80.

• Painted steel housing.

• Easy installation in new construction or retrofit.

• Chain-mount kits (includes v-hooks and ⅛“ thick, 1-meter long chain) are standard.

• Options include lenses (clear & diffused), wire-guard kits, surface-mounting kits, pendant-mounting kits, and cable-mounting kits.

* contact factory for other color temperatures and lumen packages.

**L70 hours are IES TM-21-11 calculated hours.
