COMMERCIAL LIGHTING

The WFP-2X4-LKFS is a high-performance 2x4 LED panel designed for commercial and office applications. It provides uniform illumination with energy-efficient LED technology, making it an ideal replacement for traditional fluorescent fixtures. WFP series flat panel and emergency driver are FCC Part 15B compliant.

Key Features

• Ultra-thin, lightweight design for easy installation

• High-efficiency LED chips with long lifespan

• Flicker-free and glare-reducing light output

• Adjustable wattage and CCT for customized lighting

• Compatible with 0-10V dimming systems

• DLC Premium & UL certified for energy efficiency and safety

Technical Specifications

Applications

• Office Spaces

• Schools & Universities

• Healthcare Facilities

• Conference Rooms

• Retail Stores

Mounting Options

• Recessed Grid Ceiling (Standard)

• Surface Mount Kit (Optional)

• Suspension Kit (Optional)

Specification Sheet

The premium-performance CLTR24D-50 is a 2’ x 4’ LED center basket luminaire, which offers industry-leading lumens per watt (LPW), and which is DLC Premium listed. The CLTR24D-50 is designed as a direct replacement for 2’ x 4’ fluorescent luminaires installed in grid ceilings. It is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10 vdc dimming capability.

FEATURES

▪ Available in 3000k (warm white), 3500k (warm/neutral white), 4000k (neutral white) & 5000k (cool white) color temperatures.*
▪ Long-life LEDs provide 199,000 hours of operation with at least 70% of initial lumen output (L70).**
▪ Uniform illumination with no visible LED pixelation.
▪ Universal 120-277 AC voltage (50-60Hz) is standard.
▪ 0-10vdc dimming capability is standard.
▪ Power factor > 0.90.
▪ Total harmonic distortion < 20%.
▪ Color rendering index > 80.
▪ Steel housing and acrylic lens.
▪ Easy installation in new construction or retrofit. Fits in standard 2' x 4' grid ceilings.
▪ Standard earthquake clips provide secure installation in grid ceilings.
▪ Standard mounting options include recessed mounting in grid ceilings, or suspended mounting using attached hanging brackets.

* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours

WARRANTY & LISTINGS

▪ UL listed for damp locations and insulated ceilings (IC-rated) for use in ambient temperatures from -20°C to 40°C (-4°F to 104°F).
▪ DLC Premium listed.
▪ Flicker-free per IEEE 1789-2015 (low risk of adverse effects of flicker at 100% light output level).
▪ Complies with RoHS (Restriction on Hazardous Substances) requirements.
▪ Complies with FCC Part 15, part B.
▪ Complies with IEEE C.62.41-1991, input transient surge protection (2kV).
▪ 5-year warranty of all electronics and housing.

The CLWPP is a series of premium, rugged, durable LED wall packs, which are ideal solution for outdoor perimeter and area lighting. With a die cast aluminum housing and a polycarbonate lens, the CLWPP wall packs will stand up to many years of punishing environmental conditions. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID wall packs.

  FEATURES

• Available in 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide 141,000 hours of operation with at least 70% of initial lumen output (L70).**
• CLWPP-35 provides 4,632 lumens & 129 lumens per watt (LPW) at 4000k; or 4,726 lumens & 131 LPW at 5000k.*
• CLWPP-55 provides 7,588 lumens & 133 LPW at 4000k; or 7,728 lumens & 136 LPW at 5000k.*
• CLWPP-80 provides 9,486 lumens & 123 LPW at 4000k; or 9,680 lumens & 126 LPW at 5000k.*
• CLWPP-100 provides 13,065 lumens & 129 LPW at 4000k; or 13,295 lumens & 132 LPW at 5000k.*
• CLWPP-120 provides 15,523 lumens & 130 LPW at 4000k; or 15,787 lumens & 133 LPW at 5000k.*
• Uniform illumination with no visible LED pixelation.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index > 80.
• Die cast aluminum housing with dark bronze, powder coat paint.
• Polycarbonate lens with seamless, silicone gasket to prevent leaks
Polycarbonate has F1 rating to avoid discoloration.
• Internal bubble level facilitates level installation.
• Easy installation in new construction or retrofit.

* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours.

  WARRANTY/LISTING

• cULus listed for wet locations (-20°C to 45°C / -4°F to 113°F)
• IP65 rated
• DLC premium approved
• Complies with FCC Part 15 class B
• Complies with EN61000-4-5, surge immunity (minimum 2kV)
• 5-Year Warranty on all electronics and housing.

Specification Sheet

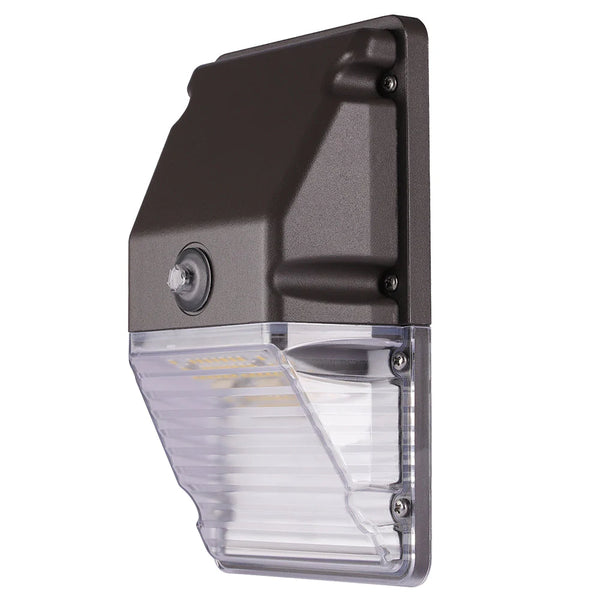

The CLWM wall pack series is an economical solution for outdoor perimeter and area lighting. With a builtin photocell, and a polycarbonate housing and lens, the CLWM is a versatile and durable outdoor luminaire. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID wall packs.

 FEATURES
• Available in 4000k and 5000k color temperatures.*
• 06-LEDWPPC20W delivers 1,031 lumens and 45 lumens per watt (LPW).*
• Universal 120-277 AC voltage (50-60Hz) is standard.
• Built-in, button-type photocell (120 AC voltage only).
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index > 70.
• Polycarbonate housing with a painted, die cast aluminum back plate, and a seamless gasket to prevent leaks.
• Fluted, polycarbonate lens for even light distribution.
• Easy installation in new construction or retrofit.

* Contact factory for other color temperatures and lumen packages.

  WARRANTY/LISTINGS
• cULus listed for wet locations (-20°C to 40°C / -4°F to 104°F).
• IP54 rates.
• Complies with FCC Part 15, Class B.
• 3-year warranty on all electronics and housing.

Specification Sheet

Selectable LED Architectural Wall Pack series can be widely used in indoor or outdoor lighting (wet location). Ideal for museums, art galleries, shopping malls, office buildings, walls and many other applications.

Power: 12W / 18W / 24W / 30W
Input: AC 277-480V
CCT: 3000K / 4000K / 5000K
Output: 12W 1608 LM / 1704 LM / 1680 LM
             18W 2340 LM / 2520 LM / 2448 LM
             24W 3024 LM / 3264 LM / 3120 LM
             30W 3630 LM / 3960 LM / 3750 LM

Factory Default Parameters:
Power: 30W
CCT：4000K
Driver: KERHAM

The CLWM wall pack series is an economical solution for outdoor perimeter and area lighting. With a builtin photocell, and a polycarbonate housing and lens, the CLWM is a versatile and durable outdoor luminaire. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID wall packs.

 FEATURES
• Available in 4000k and 5000k color temperatures.*
• 06-LEDWPPC20W delivers 2,400 lumens and 45 lumens per watt (LPW).*
• Universal 120-277 AC voltage (50-60Hz) is standard.
• Built-in, button-type photocell (120 AC voltage only).
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index > 70.
• Polycarbonate housing with a painted, die cast aluminum back plate, and a seamless gasket to prevent leaks.
• Fluted, polycarbonate lens for even light distribution.
• Easy installation in new construction or retrofit.

* Contact factory for other color temperatures and lumen packages.

  WARRANTY/LISTINGS
• cULus listed for wet locations (-20°C to 40°C / -4°F to 104°F).
• IP54 rates.
• Complies with FCC Part 15, Class B.
• 3-year warranty on all electronics and housing.

Specification Sheet

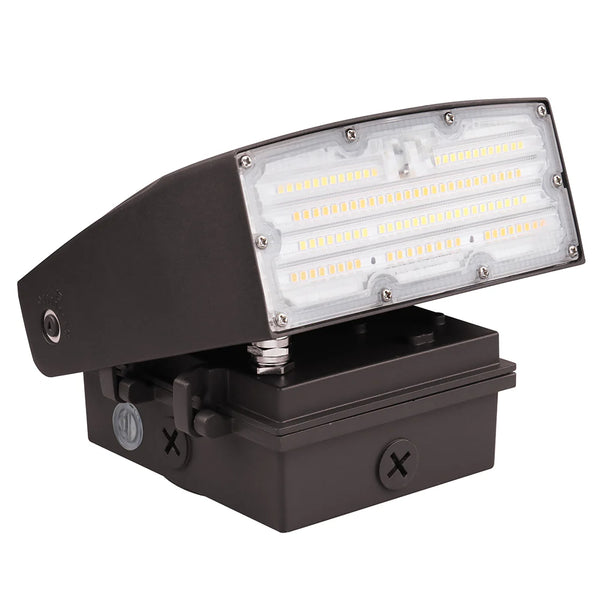

Adjustable WALL PACK LED Lighting Series can be widely used for indoor or outdoor lighting (Wet Location). Excellent for museums, art galleries, shopping malls, office buildings, walls and many other applications.


Power: 70W
Input: AC 120-277V
CCT: 5000K
Output: 9170 Lm
Light Source: Lumileds
Driver: KERHAM

The CLWPP is a series of premium, rugged, durable LED wall packs, which are ideal solution for outdoor perimeter and area lighting. With a die cast aluminum housing and a polycarbonate lens, the CLWPP wall packs will stand up to many years of punishing environmental conditions. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID wall packs.

  FEATURES

• Available in 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide 141,000 hours of operation with at least 70% of initial lumen output (L70).**
• CLWPP-35 provides 4,632 lumens & 129 lumens per watt (LPW) at 4000k; or 4,726 lumens & 131 LPW at 5000k.*
• CLWPP-55 provides 7,588 lumens & 133 LPW at 4000k; or 7,728 lumens & 136 LPW at 5000k.*
• CLWPP-80 provides 9,486 lumens & 123 LPW at 4000k; or 9,680 lumens & 126 LPW at 5000k.*
• CLWPP-100 provides 13,065 lumens & 129 LPW at 4000k; or 13,295 lumens & 132 LPW at 5000k.*
• CLWPP-120 provides 15,523 lumens & 130 LPW at 4000k; or 15,787 lumens & 133 LPW at 5000k.*
• Uniform illumination with no visible LED pixelation.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index > 80.
• Die cast aluminum housing with dark bronze, powder coat paint.
• Polycarbonate lens with seamless, silicone gasket to prevent leaks
Polycarbonate has F1 rating to avoid discoloration.
• Internal bubble level facilitates level installation.
• Easy installation in new construction or retrofit.

* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours.

  WARRANTY/LISTING

• cULus listed for wet locations (-20°C to 45°C / -4°F to 113°F)
• IP65 rated
• DLC premium approved
• Complies with FCC Part 15 class B
• Complies with EN61000-4-5, surge immunity (minimum 2kV)
• 5-Year Warranty on all electronics and housing.

Specification Sheet

The CLHB-LF-90 is a full-body, premium-performance LED high bay luminaire. It is designed to illuminate a wide variety of settings, including commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a painted, steel housing, the CLHB-LF-90 provides durability and high performance. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID high bays.

The CLLSH series is a group of 2’, 3’, 4’ and 8’ slim strip lights, which are designed as direct replacements for fluorescent strips. The CLLSH series is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.

FEATURES
• CLLSH2 provides 2,582 luminaire lumens
(129 lumens per watt, LPW) at 3500k; 2,592 luminaire
lumens (130 LPW) at 4000k; and 2,613 luminaire lumens (131 LPW) at 5000k.*
• CLLSH3 provides 3,138 luminaire lumens
(126 LPW) at 3500k; 3,154 luminaire lumens (126 LPW) at 4000k; and 3,186 luminaire lumens (127 LPW) at 5000k.*
• CLLSH4 provides 4,278 luminaire lumens (130
LPW) at 3500k; 4,313 luminaire lumens (131 LPW) at
4000k; and 4,382 luminaire lumens (133 LPW) at 5000k.*
• CLLSH8 provides 8,129 luminaire lumens (131 LPW) at 3500k; 8,131 luminaire lumens (131 LPW) at
4000k; and 8,135 luminaire lumens (131 LPW) at 5000k.*
• Uniform illumination with no visible LED pixelation.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.

 * contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours.

 WARRANTY/LISTING
• cETLus listed for damp locations in ambient temperatures from 20°C to 50°C (-4°F to 122°F).
• DLC premium approved.
• Flicker-free per IEEE1789-2015 (low risk of adverse effects of flicker at 100% light output level).
• Complies with FCC Part 15, Class B (except for
CLLSH8, which has Class A compliance).
• Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
• Complies with RoHS (Restriction on Hazardous
Substances) requirements.
• 5-Year Warranty of all electronics and housing.

Specification Sheet

The CLWP-40 Series is a rugged, durable LED wall pack that provides full adjustability of the LED module, so light can be focused up, down, or anything in between. It is perfect for outdoor perimeter and area lighting. With a die cast aluminum housing and a polycarbonate lens, the CLWP-40 Series will stand up to many years of punishing environmental conditions. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID wall packs.

  FEATURES

• Available in 4000k (neutral white) and 5000k (cool white) color temperature.*
• Long-life LEDs provide 61,000 hours of operation with at least 70% of initial lumens output (L70).**
• LEDWPA40 provides 5,238 lumens and 131 lumens per watt (LPW) at 4000k, or 5,131 lumens and 128 LPW at 5000k.*
• Uniform illumination with no visible LED pixilation.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index > 70.
• Die cast aluminum housing with durable, dark bronze, powder coat paint.
• Polycarbonate lens with seamless, silicone gasket to prevent leaks.
• Easy installation in new construction or retrofit.

  WARRANTY/LISTING

• cULus listed for wet locations (-20°C to 40°C / -4°F to 113°F)
• DLC Premium approved
• IP65 rated
• Complies with FCC Part 15, class B.
• Complies with EN61000-4-5, surge immunity (1kV minimum)
• 5-year warranty of all electronics and housing

Specification Sheet

Selectable LED Slim Adjustable Wall Pack series can be widely used in indoor or outdoor lighting (wet location). The head tilts from 0º to 90º. Ideal for mechanical or electronic processing workshops, storage warehouses, steel mills, gas stations, toll booth, waiting rooms, the platforms of railway station, indoor stadiums.

** Photocell control available (Standard)**
** 1-10V Dimming**

Power: 40W / 60W / 80W
Input: AC 120-277V
CCT: 3000K/4000K/5000K
Output: 10000LM/11200LM/10800LM
Light Source: Lumileds
Driver: Daermay

Factory Default Parameters:
Power:80W
CCT：4000K

The CLLS series is a group of 2’, 3’, 4’ and 8’ covered strip lights, which are designed as direct replacements for fluorescent strips. The CLLS series is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.

FEATURES
• Available in 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide up to 122,000 hours of operation with at least 70% of initial lumen output (L70).**
• Uniform illumination with no visible LED pixilation
• Universal 120-277 AC voltage (50-60Hz) is standard
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%
• Color rendering index > 80.
• Steel housing and acrylic lens.
• Easy installation in new construction or retrofit.

 * contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours.

 WARRANTY/LISTING
• cULus approved for damp locations (-20°C to 50°C / -4°F to 122°F).
• DLC premium approved.
• Complies with RoHS (Restriction on Hazardous Substances) requirements.
• Complies with FCC Part 15 class A.
• Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
• Complies with IEEE 61000-4-2 level 2 (4kV) electrostatic discharge (ESD).

Specification Sheet

Our CLHB-IB series is a premium-performance, I-beam LED high bay luminaire. It is designed to illuminate a wide variety of settings, including commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a painted, steel housing, the CLHB-IB provides high levels of durability and performance. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID high bays.

 FEATURES

▪ Available in 4000k (neutral white) and 5000k (cool white) color temperatures.*
▪ Long-life LEDs provide 109,000 hours of operation with at least 70% of initial lumen output (L70).**
▪ The 100W model delivers 13,634 lumens (136 lumens per watt, LPW) at 4000k, and 13,709 lumens (137 LPW) at 5000k.*
▪ The 150W model delivers 20,482 lumens (137 LPW) at 4000k, and 20,603 lumens (137 LPW) at 5000k.*
▪ The 200W model delivers 27,687 lumens (141 LPW) at 4000k, and 27,736 lumens (142 LPW) at 5000k.*
▪ Universal 120-347 AC voltage (50-60Hz) is standard.
▪ 0-10vdc dimming drivers are standard.
▪ Power factor > 0.90.
▪ Total harmonic distortion < 20%.
▪ Color rendering index > 80.
▪ Painted steel housing.
▪ Easy installation in new construction or retrofit.
▪ Chain-mount kits (includes v-hooks and ⅛" thick, 1-meter long chain) are standard.
▪ Options include lenses (clear & diffused), wire-guard kits, pendant-mounting kits, and cable-mounting kits.

* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours.

 WARRANTY & LISTINGS

▪ cETLus listed for damp locations in ambient temperatures from
▪ 20°C to 50°C (-4°F to 122°F).
▪ DLC premium approved.
▪ Flicker-free per IEEE1789-2015 (no observable adverse effects of flicker at 100% light output level).
▪ Complies with RoHS (Restriction on Hazardous Substances) requirements
▪ Complies with FCC Part 15, class A.
▪ Complies with IEEE C.62.41-1991, input transient protection (2kV).
▪ 5-Year Warranty of all electronics and housing.

 MOUNTING OPTIONS

▪ Chain mounting with V-hooks is standard.
▪ Optional pendant mounting kit provides pendant attachment to ½" rigid conduit.
▪ Optional cable mounting kits provide suspension at two lengths (i.e., 3 & 5 meters).

Specification Sheet

Selectable LED GLASS WALL PACK LED Lighting Series can be widely used for indoor or outdoor lighting (Wet Location). Excellent for museums, art galleries, shopping malls, office buildings, walls and many other applications.

Power: 48W / 72W / 96W / 120W
Input: AC 120-277V
CCT: 3000K /4000K / 5000K
Output: 6990 LM / 10447 LM
13422 LM / 16767LM

Factory Default Setup:
Power: 120W
CCT: 4000K
Light Source: 2835 LEDs
Driver: KERHAM

The Selectable Full Cutoff Wall Pack LED Lighting Series can be widely used for indoor or outdoor lighting (Wet Location). Excellent for museums, art galleries, shopping malls, office buildings, walls and many other applications.

Power: 28W / 42W / 56W / 70W
Input: AC 120-277V
CCT: 3000K /4000K / 5000K
Output: 4116 LM/6174 LM/7840 LM/9800 LM

Factory Default Parameters:
Power: 70W
CCT：4000K
Light Source: 2835 LEDs
Driver: KERHAM

The Selectable Semi-Cutoff Wall Pack LED Lighting Series can be widely used for Indoor or Outdoor (Wet Location) Excellent for Museums, Art Galleries, Shopping Malls, Office Buildings, Walls and many other applications.

Power: 28W / 42W / 56W / 70W
Input: AC 120-277V
CCT: 3000K/ 4000K / 5000K
Output:  4483 LM / 5896  LM
               7740 LM / 9753 LM

Factory Default Parameters:
Power: 70W
CCT: 4000K
Light Source: 2835 LEDs
Driver: KERHAM

The SSL series (Selectable Strip Light) LED linear light is ideal for replacement of fluorescent lights or new installation. The desired Power (W) and CCT (K) are field selectable which makes this fixture a versatile solution for multiple commercial and industrial applications.  The fixture provides well-distributed illumination. Lifespan: 100,000 hrs. Mounting: Surface and suspended

ELECTRICAL

Power: 55W, 60W, 65W, 75W, 91W (Field Selectable)

CCT: 3500K, 4000K, 5000K (Field Selectable)

Efficacy: 130 lm/W

CRI > 80

Operating voltage: 120-277V AC

Dimming: 0-10V

Power factor > 0.9

OPTICS / FINISH

Beam angle: 112°

Steel housing

Frosted acrylic lens

White finish

WARRANTY

5-years warranty

Specification Sheet

The CLWPP is a series of premium, rugged, durable LED wall packs, which are ideal solution for outdoor perimeter and area lighting. With a die cast aluminum housing and a polycarbonate lens, the CLWPP wall packs will stand up to many years of punishing environmental conditions. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID wall packs.

  FEATURES

• Available in 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide 141,000 hours of operation with at least 70% of initial lumen output (L70).**
• CLWPP-35 provides 4,632 lumens & 129 lumens per watt (LPW) at 4000k; or 4,726 lumens & 131 LPW at 5000k.*
• CLWPP-55 provides 7,588 lumens & 133 LPW at 4000k; or 7,728 lumens & 136 LPW at 5000k.*
• CLWPP-80 provides 9,486 lumens & 123 LPW at 4000k; or 9,680 lumens & 126 LPW at 5000k.*
• CLWPP-100 provides 13,065 lumens & 129 LPW at 4000k; or 13,295 lumens & 132 LPW at 5000k.*
• CLWPP-120 provides 15,523 lumens & 130 LPW at 4000k; or 15,787 lumens & 133 LPW at 5000k.*
• Uniform illumination with no visible LED pixelation.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index > 80.
• Die cast aluminum housing with dark bronze, powder coat paint.
• Polycarbonate lens with seamless, silicone gasket to prevent leaks
Polycarbonate has F1 rating to avoid discoloration.
• Internal bubble level facilitates level installation.
• Easy installation in new construction or retrofit.

* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours.

  WARRANTY/LISTING

• cULus listed for wet locations (-20°C to 45°C / -4°F to 113°F)
• IP65 rated
• DLC premium approved
• Complies with FCC Part 15 class B
• Complies with EN61000-4-5, surge immunity (minimum 2kV)
• 5-Year Warranty on all electronics and housing.

Specification Sheet

The Tunable Semi-Cutoff Wall Pack LED Lighting Series can be widely used for indoor or outdoor lighting (Wet Location). Excellent for museums, art galleries, shopping malls, office buildings, walls and many other applications.


Power: 30W / 45W / 60W / 70W
Input: AC 120-277V
CCT: 3000K /4000K / 5000K
Output: 4483 LM/5896 LM/7636 LM/8776 LM

Factory Default Parameters:
Power: 70W
CCT: 4000K
Light Source: 2835 LEDs
Driver: KERHAM

LED Semi-Cutoff Wall Pack series can be widely used as indoor or outdoor lighting (Wet location). Perfect for mechanical or electronic processing workshops, storage warehouses, steel mills, gas stations, toll booth, waiting rooms, the platforms of railway station, indoor stadiums.

Power: 100W
Input: AC 120-277V
CCT: 5000K
Output: 14300 LM
Light Source: Lumileds
Driver: SOSEN

LED GLASS WALL PACK Lighting series can be widely used as indoor or outdoor lighting (Wet location). Perfect for mechanical or electronic processing workshops, storage warehouses, steel mills, gas stations, toll booth, waiting rooms, the platforms of railway station, indoor stadiums and flower cultivating tents, etc.


Power: 50W
Input: AC 120-277V
CCT：5000K
Output: 6600 LM
Light Source: Lumileds
Driver: WELED POWER

LED GLASS WALL PACK Lighting series can be widely used as indoor or outdoor lighting (Wet location). Perfect for mechanical or electronic processing workshops, storage warehouses, steel mills, gas stations, toll booth, waiting rooms, the platforms of railway station, indoor stadiums and flower cultivating tents, etc.


Power: 70W
Input: AC 120-277V
CCT：5000K
Output: 9380 LM
Light Source: Lumileds
Driver: WELED POWER

The CLHB-LF-135 is a full-body, premium-performance LED high bay luminaire. It is designed to illuminate a wide variety of settings, including commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a painted, steel housing, the CLHB-LF-135 provides durability and high performance. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID high bays.

Field selectable 3500k (warm/neutral white), 4000k (neutral
white), & 5000k (cool white) color temperatures.*
▪ Long-life LEDs provide 144,000 hours of operation with at
least 70% of initial lumen output (L70), and 44,000 hours with at
least 90% of initial lumen output (L90).**
▪ Selectable lumen outputs range from 2,700 to 4,000 nominal
lumens.*
▪ Uniform illumination with no visible LED pixilation.
▪ Universal 120-277 AC voltage (50-60Hz) is standard.
▪ 0-10vdc dimming drivers are standard.
▪ Power factor > 90.
▪ Total harmonic distortion < 20%.
▪ Color rendering index > 80.
▪ Aluminum frame and steel housing backplate.
▪ PMMA (polymethyl methacrylate) LED lenses for optimal light
distribution, efficiency and longevity.
▪ Easy installation in new construction or retrofit.
▪ Standard earthquake clips provide secure installation in grid
ceilings.
▪ Optional emergency drivers are available.
▪ Standard mounting options include recessed mounting in grid
ceilings, or suspended mounting using attached hanging
brackets. For mounting in plaster or other hard ceiling, see
Mounting Kits.

Selectable LED Architectural Wall Pack Lighting series can be widely used in indoor or outdoor lighting (wet location). Excellent for museums, art galleries, shopping malls, office buildings, walls and many other applications.

**12Vdc Auxiliary Dimming**

Power: 28W / 42W / 56W / 70W
Input: AC 120-277V
CCT: 3000K / 4000K / 5000K
Output: 4760 LM/6880 LM/8601 LM/11124 LM
Type of lighting： T3 / T4 / T5

Factory Default Parameters:
Power: 70W
CCT：4000K
Type of lighting: T4
Driver: KERHAM

Semi-Cutoff Wall Pack series can be widely used as indoor or outdoor lighting (Wet location). Perfect for mechanical or electronic processing workshops, storage warehouses, steel mills, gas stations, toll booth, waiting rooms, the platforms of railway station, indoor stadiums.


Power: 120W
Input: AC 120-277V
CCT：5000K
Output: 17035 LM
Light Source: Lumileds
Driver: SOSEN

The CLWPP is a series of premium, rugged, durable LED wall packs, which are ideal solution for outdoor perimeter and area lighting. With a die cast aluminum housing and a polycarbonate lens, the CLWPP wall packs will stand up to many years of punishing environmental conditions. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID wall packs.

  FEATURES

• Available in 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide 141,000 hours of operation with at least 70% of initial lumen output (L70).**
• CLWPP-35 provides 4,632 lumens & 129 lumens per watt (LPW) at 4000k; or 4,726 lumens & 131 LPW at 5000k.*
• CLWPP-55 provides 7,588 lumens & 133 LPW at 4000k; or 7,728 lumens & 136 LPW at 5000k.*
• CLWPP-80 provides 9,486 lumens & 123 LPW at 4000k; or 9,680 lumens & 126 LPW at 5000k.*
• CLWPP-100 provides 13,065 lumens & 129 LPW at 4000k; or 13,295 lumens & 132 LPW at 5000k.*
• CLWPP-120 provides 15,523 lumens & 130 LPW at 4000k; or 15,787 lumens & 133 LPW at 5000k.*
• Uniform illumination with no visible LED pixelation.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index > 80.
• Die cast aluminum housing with dark bronze, powder coat paint.
• Polycarbonate lens with seamless, silicone gasket to prevent leaks
Polycarbonate has F1 rating to avoid discoloration.
• Internal bubble level facilitates level installation.
• Easy installation in new construction or retrofit.

* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours.

  WARRANTY/LISTING

• cULus listed for wet locations (-20°C to 45°C / -4°F to 113°F)
• IP65 rated
• DLC premium approved
• Complies with FCC Part 15 class B
• Complies with EN61000-4-5, surge immunity (minimum 2kV)
• 5-Year Warranty on all electronics and housing.

Specification Sheet

The CLWPP is a series of premium, rugged, durable LED wall packs, which are ideal solution for outdoor perimeter and area lighting. With a die cast aluminum housing and a polycarbonate lens, the CLWPP wall packs will stand up to many years of punishing environmental conditions. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID wall packs.

  FEATURES

• Available in 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide 141,000 hours of operation with at least 70% of initial lumen output (L70).**
• CLWPP-35 provides 4,632 lumens & 129 lumens per watt (LPW) at 4000k; or 4,726 lumens & 131 LPW at 5000k.*
• CLWPP-55 provides 7,588 lumens & 133 LPW at 4000k; or 7,728 lumens & 136 LPW at 5000k.*
• CLWPP-80 provides 9,486 lumens & 123 LPW at 4000k; or 9,680 lumens & 126 LPW at 5000k.*
• CLWPP-100 provides 13,065 lumens & 129 LPW at 4000k; or 13,295 lumens & 132 LPW at 5000k.*
• CLWPP-120 provides 15,523 lumens & 130 LPW at 4000k; or 15,787 lumens & 133 LPW at 5000k.*
• Uniform illumination with no visible LED pixelation.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index > 80.
• Die cast aluminum housing with dark bronze, powder coat paint.
• Polycarbonate lens with seamless, silicone gasket to prevent leaks
Polycarbonate has F1 rating to avoid discoloration.
• Internal bubble level facilitates level installation.
• Easy installation in new construction or retrofit.

* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours.

  WARRANTY/LISTING

• cULus listed for wet locations (-20°C to 45°C / -4°F to 113°F)
• IP65 rated
• DLC premium approved
• Complies with FCC Part 15 class B
• Complies with EN61000-4-5, surge immunity (minimum 2kV)
• 5-Year Warranty on all electronics and housing.

Specification Sheet

The WTR series LED troffer is ideal for replacement of fluorescent lights or new installation. The fixture comes in 3500K, 4000K, and 5000K CCT and has efficacy up to 125Lm/W. The troffer provides well-distributed illumination without dark spot. Specifically designed for critical facilities the WTR series troffer and emergency driver are FCC Part 15B certified.

FEATURES

▪ Available in 3000k (warm white), 3500k (warm/neutral white), 4000k (neutral white) & 5000k (cool white) color temperatures.*
▪ Long-life LEDs provide 199,000 hours of operation with at least 70% of initial lumen output (L70).**
▪ Uniform illumination with no visible LED pixelation.
▪ Universal 120-277 AC voltage (50-60Hz) is standard.
▪ 0-10vdc dimming capability is standard.
▪ Power factor > 0.90.
▪ Total harmonic distortion < 20%.
▪ Color rendering index > 80.
▪ Steel housing and acrylic lens.
▪ Easy installation in new construction or retrofit. Fits in standard 2' x 4' grid ceilings.
▪ Standard earthquake clips provide secure installation in grid ceilings.
▪ Standard mounting options include recessed mounting in grid ceilings, or suspended mounting using attached hanging brackets.

* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours

WARRANTY & LISTINGS

▪ UL listed for damp locations and insulated ceilings (IC-rated) for use in ambient temperatures from -20°C to 40°C (-4°F to 104°F).
▪ DLC Premium listed.
▪ Flicker-free per IEEE 1789-2015 (low risk of adverse effects of flicker at 100% light output level).
▪ Complies with RoHS (Restriction on Hazardous Substances) requirements.
▪ Complies with FCC Part 15, part B.
▪ Complies with IEEE C.62.41-1991, input transient surge protection (2kV).
▪ 5-year warranty of all electronics and housing.

Specification Sheet
