LED 2-Head Emergency Unit - 2W - UL Listed - 120-277V

LEDQuant

LED 2-Head Emergency Unit - 2W - UL Listed - 120-277V

$20.99

lView fullsize image

jEmail us about this product

Usually ships in 1-3 Business Days

FREE Shipping & Returns

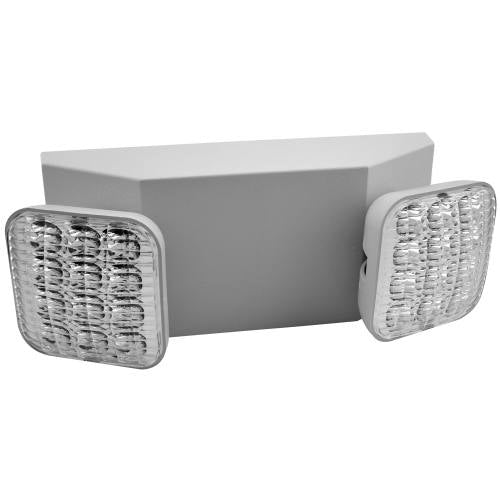

2W LED 2-HEAD EMERGENCY UNIT

ILLUMINATION

• Long lasting, efficient, ultra bright white LED lamp heads.

• 1W (8 LEDs x 0.125) per head.

• High performance chrome-plated metallized reflector and plastic lens for optimal light distribution.

• Adjustable LED lamp heads provides optimal center-to-center spacing. High-lumen option available for increased center-to-center spacing.

ELECTRICAL

• Dual 120/277 voltage standard. Optional multi-tap 208/220/240 voltage available.

• Remote capacity standard.

• Charge rate/power “ON” LED indicator light and push to test switch for mandated code compliance testing.

• 3.6V Long-life, maintenance-free, rechargeable NiCd battery.

• Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90-minute emergency illumination.

• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.

WARRANTY / LISTING

• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.

• UL listed for damp locations. (0°C - 50°C).

• Five year warranty of all electronics and housing. Battery pro-rated for five years.

OPTIONS

• HL: 12-LED per head provide increased center-to-center spacing.

• SDT: Self-diagnostic test feature performs monthly, biannually, and annually tests to ensure reliable operation and to meet electrical and life safety codes.

• SPV: UL Listed for special voltage option.

MOUNTING

• Surface mount via easy connect back plate, which fits most standard junction boxes and snaps into place making internal electrical connections.

• Top and side knockout for conduit applications.

• Suitable for wall or ceiling mount.

HOUSING

• Injection-molded, engineering-grade, 5VA flame retardant, high-impact resistant, thermoplastic in white or black finish.
