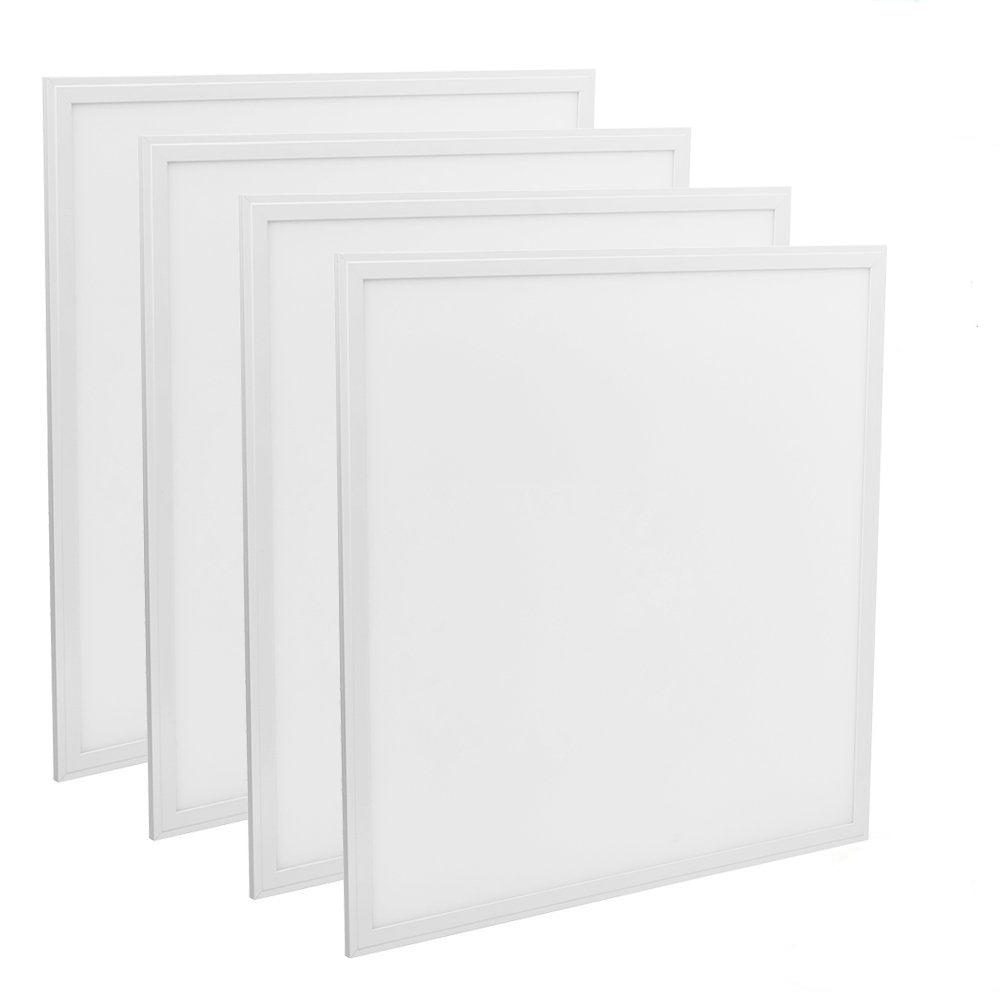

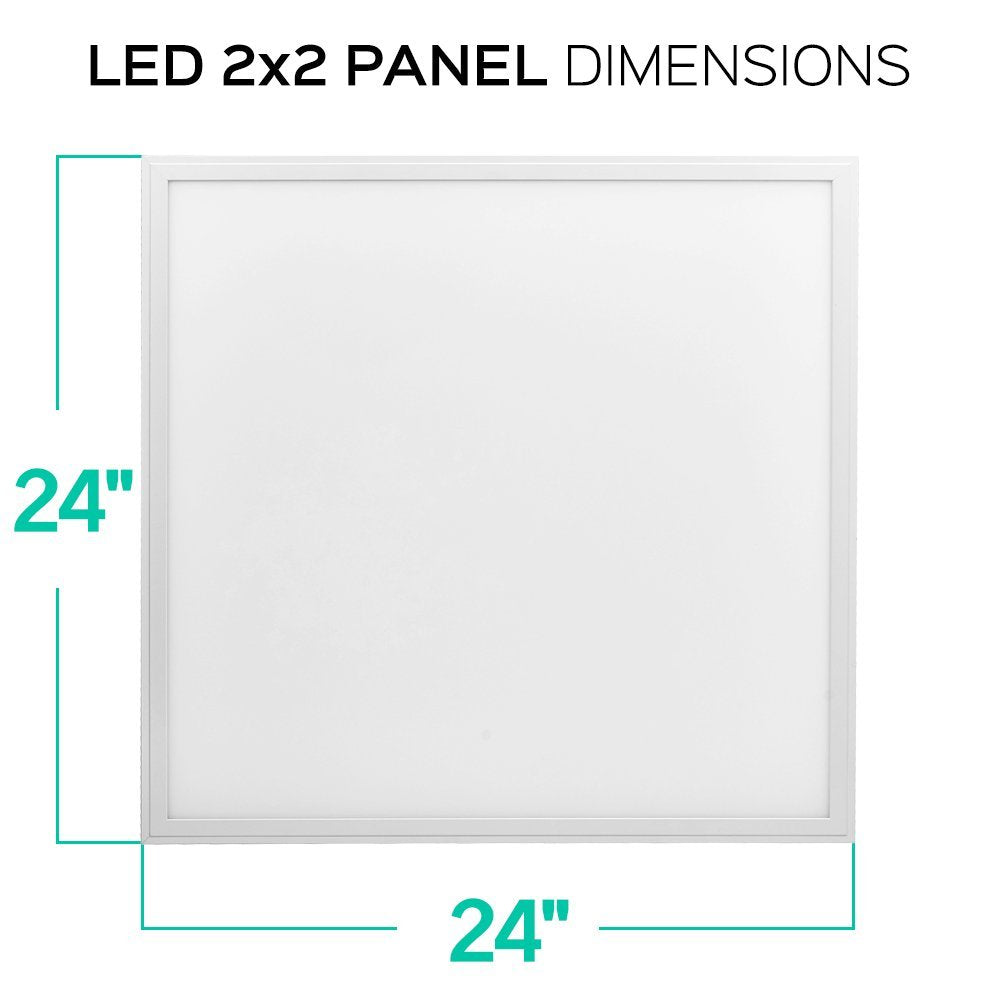

4-Pack 2x2 FT LED Panel Light, 36W, 3500K Natural White, 4000 Lumens, Dimmable, 24x24 Inch LED Drop Ceiling Light, UL Listed and DLC Listed

Related products

•

  Quick shop

  LEDQuant

  8ft LED slim linear strip light 65W, 8130lm, 0-10V dimmable, DLC premium

  $109.80











  jEmail us about this product

  v

  LEDQuant

  8ft LED slim linear strip light 65W, 8130lm, 0-10V dimmable, DLC premium

  $109.80

  Quantity





  This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

  The CLLSH series is a group of 2’, 3’, 4’ and 8’ slim strip lights, which are designed as direct replacements for fluorescent strips. The CLLSH series is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.

  FEATURES
  • CLLSH2 provides 2,582 luminaire lumens
  (129 lumens per watt, LPW) at 3500k; 2,592 luminaire
  lumens (130 LPW) at 4000k; and 2,613 luminaire lumens (131 LPW) at 5000k.*
  • CLLSH3 provides 3,138 luminaire lumens
  (126 LPW) at 3500k; 3,154 luminaire lumens (126 LPW) at 4000k; and 3,186 luminaire lumens (127 LPW) at 5000k.*
  • CLLSH4 provides 4,278 luminaire lumens (130
  LPW) at 3500k; 4,313 luminaire lumens (131 LPW) at
  4000k; and 4,382 luminaire lumens (133 LPW) at 5000k.*
  • CLLSH8 provides 8,129 luminaire lumens (131 LPW) at 3500k; 8,131 luminaire lumens (131 LPW) at
  4000k; and 8,135 luminaire lumens (131 LPW) at 5000k.*
  • Uniform illumination with no visible LED pixelation.
  • Universal 120-277 AC voltage (50-60Hz) is standard.
  • 0-10vdc dimming capability is standard.
  • Power factor > 0.90.



   * contact factory for other color temperatures and lumen packages.
  **L70 hours are IES TM-21-11 calculated hours.

   WARRANTY/LISTING
  • cETLus listed for damp locations in ambient temperatures from 20°C to 50°C (-4°F to 122°F).
  • DLC premium approved.
  • Flicker-free per IEEE1789-2015 (low risk of adverse effects of flicker at 100% light output level).
  • Complies with FCC Part 15, Class B (except for
  CLLSH8, which has Class A compliance).
  • Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
  • Complies with RoHS (Restriction on Hazardous
  Substances) requirements.
  • 5-Year Warranty of all electronics and housing.

  Specification Sheet

  Visit product page →

•

  Quick shop

  LEDQuant

  4ft LED linear strip retrofit kit 23W, 0-10V dimmable, DLC premium

  $61.99











  jEmail us about this product

  v

  LEDQuant

  4ft LED linear strip retrofit kit 23W, 0-10V dimmable, DLC premium

  $61.99

  Quantity





  This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

  The CLLSR retrofit strip lights are designed to transform existing fluorescent strips into high performance LED luminaires. The CLLSR series is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.


   FEATURES
  • Available in 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures.*
  • Long-life LEDs provide 122,000 hours of operation with at least 70% of initial lumen output (L70).**
  • Provides 2,833 luminaire lumens (123 lumens per watt, LPW) at 3500k; 2,990 luminaire lumens
  (130 LPW) at 4000k; and 3,013 luminaire lumens (131 LPW) at 5000k.*
  • Uniform illumination with no visible LED pixelation.
  • Universal 120-277 AC voltage (50-60Hz) is standard.
  • 0-10vdc dimming capability is standard.
  • Power factor > 0.90.
  • Total harmonic distortion < 20%.
  • Color rendering index > 80.
  • Steel housing and acrylic lens.
  • Easy installation in existing fluorescent strip housings

  * Contact factory for other color temperatures and lumen packages.
  ** L70 hours are IES TM-21-11 calculated hours.


   WARRANTY/LISTINGS
  • cULus approved for damp locations (-20 °C to 50 °C / -4 °F to 122 °F).
  • DLC premium approved.
  • Complies with FCC Part 15, Class A.
  • Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
  • Complies with IEC 61000-4-2 level 2 (4kV) electrostatic discharge (ESD).
  • Complies with RoHS (Restriction on Hazardous Substances) requirements.
  • 5-year warranty of all electronics and housing.

  Specification Sheet

  Visit product page →

•

  Quick shop

  LEDQuant

  2x4 FT 55W 7000 Lm Flat LED Panel Light 0-10V Dimmable Back-Lit Fixture Rebate ETL & DLC Premium

  $96.99















  jEmail us about this product

  v

  LEDQuant

  2x4 FT 55W 7000 Lm Flat LED Panel Light 0-10V Dimmable Back-Lit Fixture Rebate ETL & DLC Premium

  $96.99

  Quantity





  This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

  The ultra-thin, back-lit LED panel CLFPB24-55 series is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10 vdc dimming capability.


   FEATURES
  • Available in 3500K, 4000K and 5000K color temperatures.
  • Long-life LEDs provide 144,000 hours of operation with at least 70% of initial lumens output (L70).**
  • CLFPB24-55 provides 7,442 luminaire lumens, and 131 to 135 lumens per watt.
  • Uniform illumination with no visible LED pixilation.
  • Universal 120-277 AC voltage (50-60Hz) is standard.
  • 0-10vdc dimming capability is standard.
  • Power factor > 0.90.
  • Total harmonic distortion < 20%
  • Color rendering index > 80.
  • Aluminum housing.
  • PMMA (polymethyl methacrylate) LED lenses with light guide panels for optimal light distribution and efficiency.
  • Standard mounting options include recessed mounting in grid ceilings, or suspended mounting using attached hanging brackets. Optional surface mounting requires a surface mounting kit.
  • Easy installation in new construction or retrofit.



  **L70 hours are IES TM-21-11 calculated hours.


   WARRANTY/LISTINGS
  • ETL listed to applicable U.L. standards for damp locations and insulated ceilings (IC-rated). Suitable for ambient temperatures from -20°C to 40°C (-4°F to 104°F).
  • DLC Premium approved.
  • Complies with RoHS (Restriction on Hazardous Substances) requirements.
  • Complies with FCC Part 15.
  • 5-year warranty of all electronics and housing.



   MOUNTING KITS
  • Optional mounting kits provide for installation on plaster or other hard
  ceilings.



   DLC Approval is Required for Most Rebate Programs:

  This light is DLC approved. The DesignLights Consortium® promotes quality, performance and energy efficient commercial sector lighting solutions through collaboration among its federal, regional, state, utility, and energy efficiency program members, luminaire manufacturers, lighting designers, and other industry stakeholders throughout the US and Canada. The DLC is a project of Northeast Energy Efficiency Partnerships (NEEP), a regional non-profit which has been bringing stakeholders together since 1996 to accelerate efficiency solutions to create lasting change in the marketplace.

  Specification Sheet

  Visit product page →

•

  Quick shop

  LEDQuant

  4ft selectable linear LED light 25W, 30W, 40W 3500K, 4000K, 5000K 0-10V dimmable, DLC

  63.32 $56.99















  jEmail us about this product

  v

  LEDQuant

  4ft selectable linear LED light 25W, 30W, 40W 3500K, 4000K, 5000K 0-10V dimmable, DLC

  $63.32 $56.99

  Quantity





  This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

  The SSL series (Selectable Strip Light) LED linear light is ideal for replacement of fluorescent lights or new installation. The desired Power (W) and CCT (K) are field selectable which makes this fixture a versatile solution for multiple commercial and industrial applications.  The fixture provides well-distributed illumination. Lifespan: 100,000 hrs. Mounting: Surface and suspended

  ELECTRICAL

  Power: 25W, 30W, 40W,  (Field Selectable)

  CCT: 3500K, 4000K, 5000K (Field Selectable)

  Efficacy: 130 lm/W

  CRI > 80

  Operating voltage: 120-277V AC

  Dimming: 0-10V

  Power factor > 0.9

  OPTICS / FINISH

  Beam angle: 112°

  Steel housing

  Frosted acrylic lens

  White finish

  WARRANTY

  5-years warranty

  Visit product page →
