The WTR series LED troffer is ideal for replacement of fluorescent lights or new installation. The fixture comes in 3500K, 4000K, and 5000K CCT and has efficacy up to 125Lm/W. The troffer provides well-distributed illumination without dark spot. Specifically designed for critical facilities the WTR series troffer and emergency driver are FCC Part 15B certified.
FEATURESÂ
â–ª Available in 3000k (warm white), 3500k (warm/neutral white), 4000k (neutral white) & 5000k (cool white) color temperatures.*
â–ª Long-life LEDs provide 199,000 hours of operation with at least 70% of initial lumen output (L70).**
â–ª Uniform illumination with no visible LED pixelation.
â–ª Universal 120-277 AC voltage (50-60Hz) is standard.
â–ª 0-10vdc dimming capability is standard.
â–ª Power factor > 0.90.
â–ª Total harmonic distortion < 20%.
â–ª Color rendering index > 80.
â–ª Steel housing and acrylic lens.
â–ª Easy installation in new construction or retrofit. Fits in standard 2' x 4' grid ceilings.
â–ª Standard earthquake clips provide secure installation in grid ceilings.
â–ª Standard mounting options include recessed mounting in grid ceilings, or suspended mounting using attached hanging brackets.Â
* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours
WARRANTY & LISTINGSÂ
▪ UL listed for damp locations and insulated ceilings (IC-rated) for use in ambient temperatures from -20°C to 40°C (-4°F to 104°F).
â–ª DLC Premium listed.
â–ª Flicker-free per IEEE 1789-2015 (low risk of adverse effects of flicker at 100% light output level).
â–ª Complies with RoHS (Restriction on Hazardous Substances) requirements.
â–ª Complies with FCC Part 15, part B.
â–ª Complies with IEEE C.62.41-1991, input transient surge protection (2kV).
â–ª 5-year warranty of all electronics and housing.
The premium-performance CLTR22N is a 2’ x 2’ LED center basket luminaire, which offers industry-leading lumens per watt (LPW), and which is DLC Premium listed. The CLTR22N is designed as a direct replacement for 2’ x 2’ fluorescent luminaires installed in grid ceilings. It is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.
FEATURES
• Available in 3000k (warm white), 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide 81,000 hours of operation with at least 70% of initial lumen output (L70).**
• Provides 3,709 luminaire lumens (124 lumens per watt, LPW) at 3000k, 3,766 luminaire lumens (126 LPW) at 4000k, and 3,823 luminaire lumens (128 LPW) at 5000k.*
• Uniform illumination with no visible LED pixelation.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index > 80.
• Steel housing and acrylic lens.
• Easy installation in new construction or retrofit. Fits in standard 2’ x 2’ grid ceilings.
• Standard earthquake clips provide secure installation in grid
ceilings.
*Contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours.
WARRANTY/LISTING
• UL listed for damp locations and insulated ceilings (IC-rated) for use in ambient temperatures from -25°C to 50°C (-13°F to 122°F).
• DLC Premium listed.
• Complies with FCC Part 15, class B.
• 5-year warranty of all electronics and housing.
The premium-performance CLTR22D-32 is a low-profile 2’ x 2’ LED center basket luminaire, which offers industry-leading lumens per watt (LPW). The CLTR22D-32 is designed as a direct replacement for 2’ x 2’ fluorescent luminaires installed in grid or plaster ceilings. It is also designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.
FEATURESÂ
â–ª Available in 3000k (warm white), 3500k (warm/neutral white), 4000k (neutral white) & 5000k (cool white) color temperatures.*
â–ª Long-life LEDs provide 199,000 hours of operation with at least 70% of initial lumen output (L70).**
â–ª Provides 4,195 luminaire lumens (131 lumens per watt, LPW) at 3000k; 4,293 luminaire lumens (134 LPW) at 3500k; 4,371
luminaire lumens (137 LPW) at 4000k; and 4,527 luminaire lumens (141 LPW) at 5000k.*
â–ª Uniform illumination with no visible LED pixelation.
â–ª Universal 120-277 AC voltage (50-60Hz) is standard.
â–ª 0-10vdc dimming capability is standard.
â–ª Power factor > 0.90.
â–ª Total harmonic distortion < 20%.
â–ª Color rendering index > 80.
â–ª Steel housing and acrylic lens.
▪ Easy installation in new construction or retrofit. Fits in standard 2’ x 2’ grid ceilings.
â–ª Standard earthquake clips provide secure installation in grid ceilings.
â–ª Standard mounting options include recessed mounting in grid ceilings, or suspended mounting using attached hanging brackets.Â
* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours
WARRANTY & LISTINGSÂ
▪ UL listed for damp locations and insulated ceilings (IC-rated) for use in ambient temperatures from -20°C to 40°C (-4°F to 104°F).
â–ª DLC Premium listed.
â–ª Flicker-free per IEEE1789-2015 (low risk of adverse effects of flicker at 100% light output level).
â–ª Complies with RoHS (Restriction on Hazardous Substances) requirements.
â–ª Complies with FCC Part 15, part B.
â–ª Complies with IEEE C.62.41-1991, input transient surge protection (2kV).
â–ª 5-year warranty of all electronics and housing.
Â

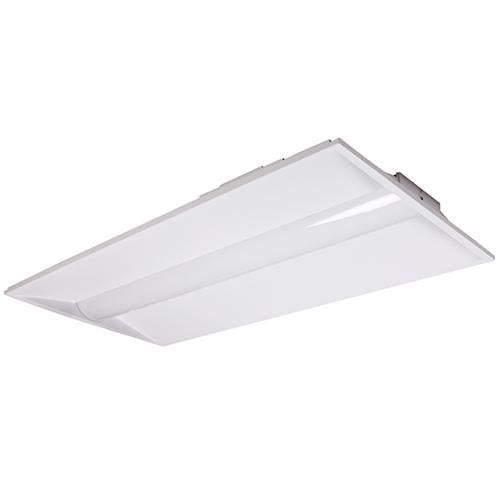

The premium-performance CLTR24N-40 is a 2’ x 4’ LED center basket luminaire, which offers industry-leading lumens per watt (LPW), and which is DLC Premium listed. The CLTR24N-40 is designed as a direct replacement for 2’ x 4’ fluorescent luminaires installed in grid ceilings. It is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10 vdc dimming capability.
FEATURESÂ
â–ª Available in 3000k (warm white), 3500k (warm/neutral white), 4000k (neutral white) & 5000k (cool white) color temperatures.*
â–ª Long-life LEDs provide 199,000 hours of operation with at least 70% of initial lumen output (L70).**
â–ª Provides 5,680 luminaire lumens (129 lumens per watt, LPW) at 3000k; 5,743 luminaire lumens (131 LPW) at 3500k; 5,794
luminaire lumens (132 LPW) at 4000k; and 5,894 luminaire lumens (134 LPW) at 5000k.*
â–ª Uniform illumination with no visible LED pixelation.
â–ª Universal 120-277 AC voltage (50-60Hz) is standard.
â–ª 0-10vdc dimming capability is standard.
â–ª Power factor > 0.90.
â–ª Total harmonic distortion < 20%.
â–ª Color rendering index > 80.
â–ª Steel housing and acrylic lens.
â–ª Easy installation in new construction or retrofit. Fits in standard 2' x 4' grid ceilings.
â–ª Standard earthquake clips provide secure installation in grid ceilings.
â–ª Standard mounting options include recessed mounting in grid ceilings, or suspended mounting using attached hanging brackets.Â
* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours
WARRANTY & LISTINGSÂ
▪ UL listed for damp locations and insulated ceilings (IC-rated) for use in ambient temperatures from -20°C to 40°C (-4°F to 104°F).
â–ª DLC Premium listed.
â–ª Flicker-free per IEEE 1789-2015 (low risk of adverse effects of flicker at 100% light output level).
â–ª Complies with RoHS (Restriction on Hazardous Substances) requirements.
â–ª Complies with FCC Part 15, part B.
â–ª Complies with IEEE C.62.41-1991, input transient surge protection (2kV).
â–ª 5-year warranty of all electronics and housing.
The premium-performance CLTR24D-50 is a 2’ x 4’ LED center basket luminaire, which offers industry-leading lumens per watt (LPW), and which is DLC Premium listed. The CLTR24D-50 is designed as a direct replacement for 2’ x 4’ fluorescent luminaires installed in grid ceilings. It is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10 vdc dimming capability.
FEATURESÂ
â–ª Available in 3000k (warm white), 3500k (warm/neutral white), 4000k (neutral white) & 5000k (cool white) color temperatures.*
â–ª Long-life LEDs provide 199,000 hours of operation with at least 70% of initial lumen output (L70).**
â–ª Uniform illumination with no visible LED pixelation.
â–ª Universal 120-277 AC voltage (50-60Hz) is standard.
â–ª 0-10vdc dimming capability is standard.
â–ª Power factor > 0.90.
â–ª Total harmonic distortion < 20%.
â–ª Color rendering index > 80.
â–ª Steel housing and acrylic lens.
â–ª Easy installation in new construction or retrofit. Fits in standard 2' x 4' grid ceilings.
â–ª Standard earthquake clips provide secure installation in grid ceilings.
â–ª Standard mounting options include recessed mounting in grid ceilings, or suspended mounting using attached hanging brackets.Â
* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours
WARRANTY & LISTINGSÂ
▪ UL listed for damp locations and insulated ceilings (IC-rated) for use in ambient temperatures from -20°C to 40°C (-4°F to 104°F).
â–ª DLC Premium listed.
â–ª Flicker-free per IEEE 1789-2015 (low risk of adverse effects of flicker at 100% light output level).
â–ª Complies with RoHS (Restriction on Hazardous Substances) requirements.
â–ª Complies with FCC Part 15, part B.
â–ª Complies with IEEE C.62.41-1991, input transient surge protection (2kV).
â–ª 5-year warranty of all electronics and housing.
