RESIDENTIAL LIGHTING

LED-GIMBAL-PRO Series lights are bright, energy efficient and elegantly designed. They are an ideal solution for commercial and residential applications requiring compact shape, superior quality and visual aesthetics. This 8W light produces 696-784Lm (depending on the CCT). At 1.77" tall and 2.48" round they can fit into tight spaces that a traditional recessed can light can't, such as ceilings with ductwork/piping/obstructions, hot-roof ceilings with limited vertical clearance, and tight soffits.  It comes in Black, White and Brushed Nickel Finishes. Each light can be set at 3000K, 4000K or 5000K CCT (Adjustable). These lights feature an easily adjustable LED face (Gimbal) that can be pointed straight downward, making them compatible with sloped ceilings. This product is ETL certified.

• Energy Consumption: 8W
• Input Voltage: 110-130 VAC
• Beam Angle: 40 Degrees
• Color Temperature: 3000K, 4000K or 5000K (Adjustable)

• Finish: Black, White or Brushed Nickel
• Dimmable: Yes

• Installation: Recessed mount
• Certifications: ETL, CE, RoHS
• Trim Diameter: 3.34in (85mm)
• Module/Body Diameter: 2.48" (63mm)
• Height: 1.77in (45mm)
• Junction Box Length: 4.25" (108mm)
• Junction Box Width: 2.4" (60mm)
• Junction Box Height: 1.33" (34mm)
• Cutout hole: 2 3/4" (70mm) to 2 7/8" (73mm)
• Lifespan: 39,000 hours
• Warranty: 5 years

Specification Sheet

LED-GIMBAL-PRO Series lights are bright, energy efficient and elegantly designed. They are an ideal solution for commercial and residential applications requiring compact shape, superior quality and visual aesthetics. This 8W light produces 696-784Lm (depending on the CCT). At 1.77" tall and 2.48" round they can fit into tight spaces that a traditional recessed can light can't, such as ceilings with ductwork/piping/obstructions, hot-roof ceilings with limited vertical clearance, and tight soffits.  It comes in Black, White and Brushed Nickel Finishes. Each light can be set at 3000K, 4000K or 5000K CCT (Adjustable). These lights feature an easily adjustable LED face (Gimbal) that can be pointed straight downward, making them compatible with sloped ceilings. This product is ETL certified.

• Energy Consumption: 8W
• Input Voltage: 110-130 VAC
• Beam Angle: 40 Degrees
• Color Temperature: 3000K, 4000K or 5000K (Adjustable)

• Finish: Black, White or Brushed Nickel
• Dimmable: Yes

• Installation: Recessed mount
• Certifications: ETL, CE, RoHS
• Trim Diameter: 4.72in (120mm)
• Module/Body Diameter: 2.48" (63mm)
• Height: 1.77in (45mm)
• Junction Box Length: 4.25" (108mm)
• Junction Box Width: 2.4" (60mm)
• Junction Box Height: 1.33" (34mm)
• Cutout hole: 2 3/4" (70mm) to 2 7/8" (73mm)
• Lifespan: 39,000 hours
• Warranty: 5 years

Specification Sheet

The CLUCE is an economical series of undercabinet luminaries for use in kitchens, retail displays and coves. With a painted, steel housing and polycarbonate lens, the CLUCE provides durability and high performance. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, incandescent or fluorescent under cabinet luminaires.

 FEATURES
▪ Available in 3000k (warm white) & 4000k (neutral white) color temperatures.*
▪ Long-life LEDs provide at least 81,000 hours of operation with at least 70% of initial lumen output (L 70 ).**
▪ Delivers from 327 to 1,805 lumens & 84 to 94 lumens per watt.*
▪ Universal 120-277 AC voltage (50-60Hz) is standard.
▪ Total harmonic distortion < 20%.
▪ Color rendering index > 80.
▪ Painted steel housing and polycarbonate lens.
▪ Tool-less access to LED channel and wiring enclosure.
▪ Knockouts on sides and back simplify electrical connections.
▪ Key hole slots provide for easy installation in new construction or retrofits.

* Contact factory for other color temperatures and lumen packages.
** L 70 hours are IES TM-21-11 calculated hours.

 PRODUCT PARAMETER
• 0-10vdc dimming drivers are standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%
• Color rendering index > 80.
• Painted steel housing.
• Easy installation in new construction • Chain-mount kits (includes v-long chain) are standard.
• Options include lenses (clear surface-mounting kits, pendant-cable-mounting kits.
▪ CETLUS listed to applicable U.L. standards. Listed for damp blocations. Suitable for ambient temperatures from -20°C to 40°C (-4°F to 104°F).
▪ Energy Star certified.
▪ Complies with RoHS (Restriction on Hazardous Substances) requirements.
▪ Complies with FCC Part 15, class B.
▪ Protected against input line transients (2.5kV).
▪ 5-year warranty of all electronics and housing.

Specification Sheet

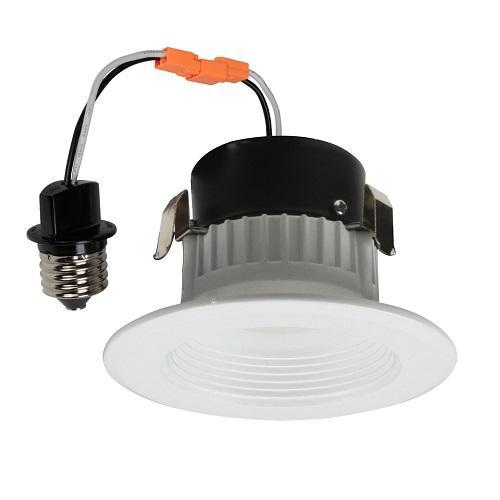

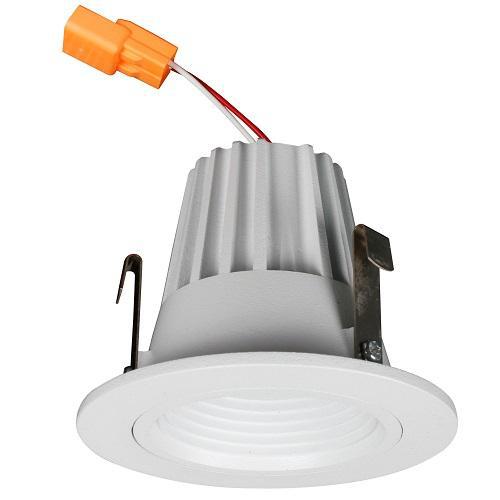

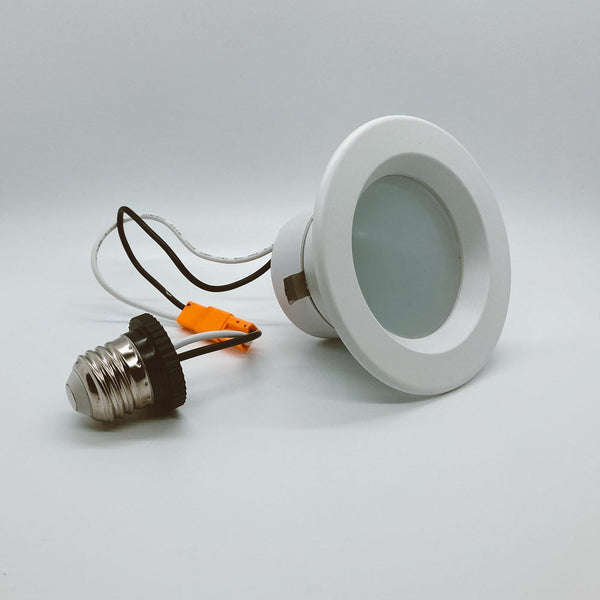

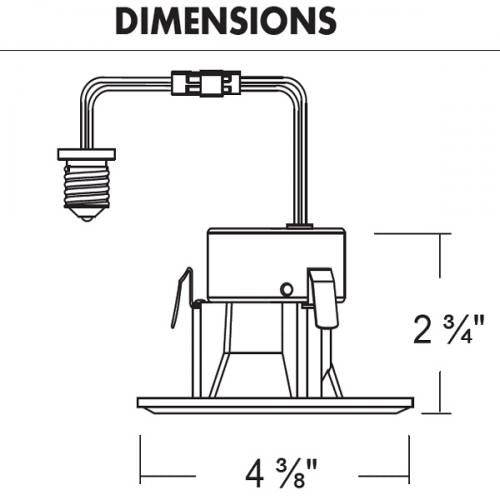

3" LED Baffle Retrofit kit. It is compatible with most 3” recessed standard housings. Ideal for both remodel or new construction applications. The retrofit kit comes with a disconnect screw-in base lead for easy installation into standard incandescent sockets.

• White painted Diecast body is appropriate for heat dissipation.
• Oversized trim ring constructed from one-piece diecast
• 3 Tension clips pre-installed on unit for easy installation
• E26 medium screw-base Edison connector provides easy retrofit of incandescent housings.
• 9W - 470 Lumens
• Protected LED driver performs at 120V
• Dimming down to 5% with most dimmers.
• CRI >80 or >90
• cULus classified
• Energy star qualified
• Title 24 compliant
• Wet locations (Not suitable for coastal/salt water area)
• Damp Locations
• RoHS compliances
• Tested in accordance with IESNA LM79 & LM80
• Dimensions - 4 3/8" x 2 3/4"

Specification Sheet

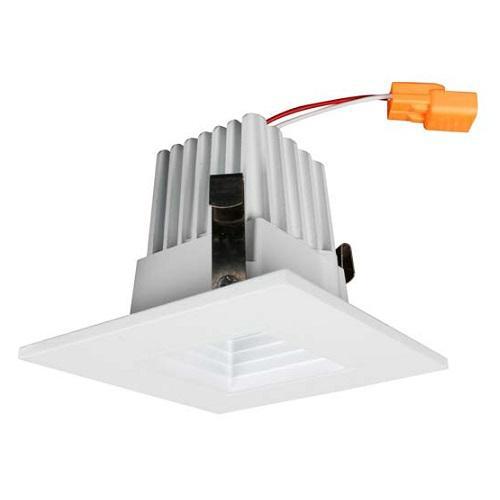

3" LED Square Baffle Retrofit kit. It is compatible with most 3” recessed standard housings. Ideal for both remodel or new construction applications. The retrofit kit comes with a disconnect screw-in base lead for easy installation into standard incandescent sockets.

• White painted Diecast body is appropriate for heat dissipation.
• Oversized trim ring constructed from one-piece diecast
• 3 Tension clips pre-installed on unit for easy installation
• E26 medium screw-base Edison connector provides easy retrofit of incandescent housings.
• 9W - 470 Lumens
• Protected LED driver performs at 120V
• Dimming down to 5% with most dimmers.
• CRI >80 or >90
• cULus classified
• Energy star qualified
• Title 24 compliant
• Wet locations (Not suitable for coastal/salt water area)
• Damp Locations
• RoHS compliances
• Tested in accordance with IESNA LM79 & LM80
• Dimensions - 4 3/8" x 2 3/4"

Specification Sheet

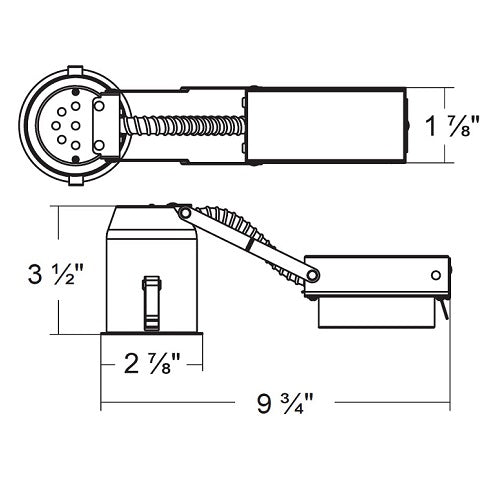

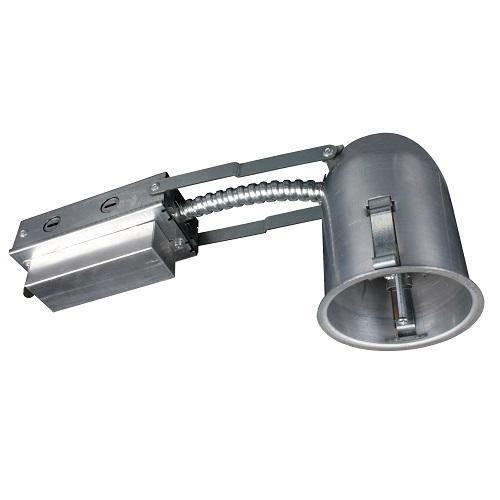

• Galvanized steel construction
• Dimensions - 2 5/8" x 3 1/2" x 6 1/4"
• 5 year warranty

Specification Sheet

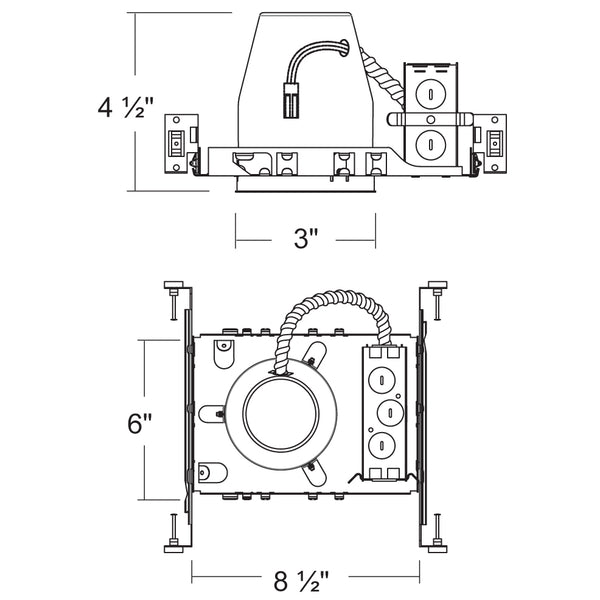

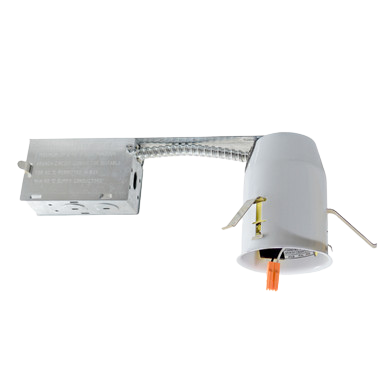

• Galvanized steel construction
• Dimensions - 2 5/8" x 4 1/2" x 7 5/8" x 12"
• 5 year warranty

Specification Sheet

EASYPRO is a high quality series of dimmable under cabinet lights for kitchens, retail displays, offices, coves. With its advanced design it offers the latest and greatest in energy-efficient undercabinet technology. Easy installation: can be just plugged in a receptacle or hardwired. Dimmable, Linkable, and Adjustable CCT features (3000K, 4000K or 6000K) make them increasingly popular linear fixtures on the market to replace existing fluorescent, incandescent, halogen and xenon undercabinet lights.

FEATURES

▪  Built-in integral electronic driver
•  Dimmable 120V
•  Adjustable CCT: 3000K, 4000K or 6000K
•  ≥80 CRI
•  Available in 2 lengths: 8" (20mm) and 16" (40mm)
•  Finish options: White or Black
•  Certifications: CE, RoHS, ETL
•  Warranty: 5 years
•  Linkable with a connector cord (included)
•  Cord with a US plug provided

Specification Sheet

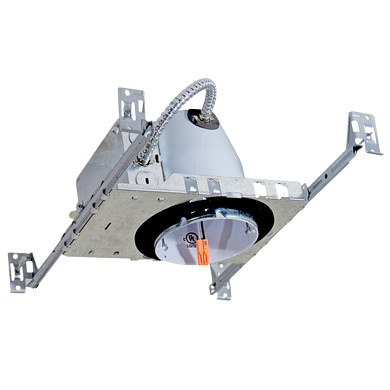

SPECIFICATIONS:

• Plaster Frame

> Galvanized Steel Construction

> Housing with J-Box can be separated from the frame, easily to connect wires

• Junction Box

> Listed for through branch circuit wiring

> Contains two 3/8 knockouts

• Bar Hanger

> Pre-installed real nail easily installs in regular lumber, engineered lumber

> Bar Hangers are adjustable from 13-5/8" to 25" and can be repositioned 90 degree on plaster frame

Specification Sheet

Energy efficient LED Flat Square Retrofit kit provides quick and easy installation with no can required. Durable powder-coated diecast trim with enclosed J-box is attached with a water-tight connection. Pre-installed plastic clips included.

 FEATURES
▪ 120V Dimmer standard, 50/60Hz.
▪ Dimmable down to 5% with most market dimmers.
▪ Use for recessed applications with drywall or drop tile ceilings (no recessed can needed).
▪ Small, lightweight J-box standard.
▪ Long life, 50,000 hour LEDs.
▪ -30°C ~ 40°C (-22°F ~ 104°F) operating temperature.

Specification Sheet

Energy efficient LED Flat Square Retrofit kit provides quick and easy installation with no can required. Durable powder-coated diecast trim with enclosed J-box is attached with a water-tight connection. Pre-installed plastic clips included.

 FEATURES
▪ 120V Dimmer standard, 50/60Hz.
▪ Dimmable down to 5% with most market dimmers.
▪ Use for recessed applications with drywall or drop tile ceilings (no recessed can needed).
▪ Small, lightweight J-box standard.
▪ Long life, 50,000 hour LEDs.
▪ -30°C ~ 40°C (-22°F ~ 104°F) operating temperature.

Specification Sheet

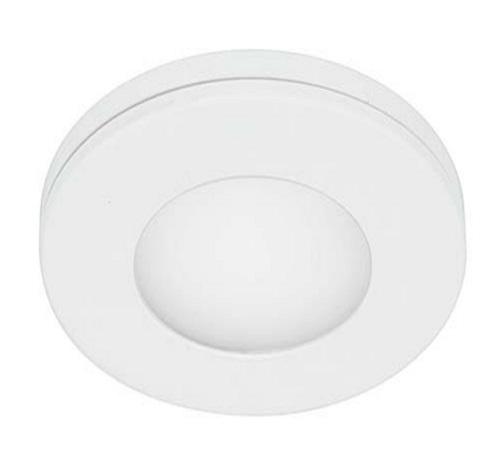

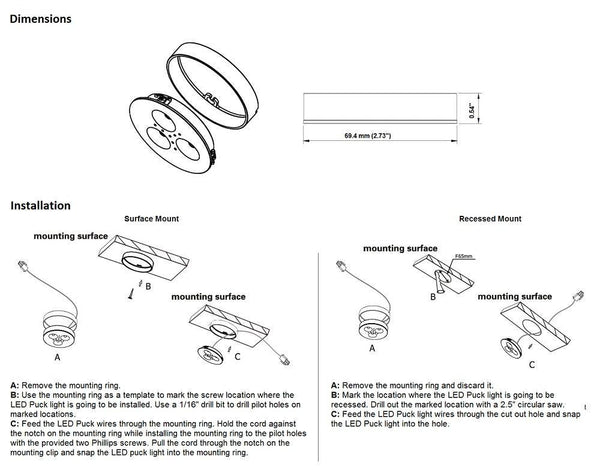

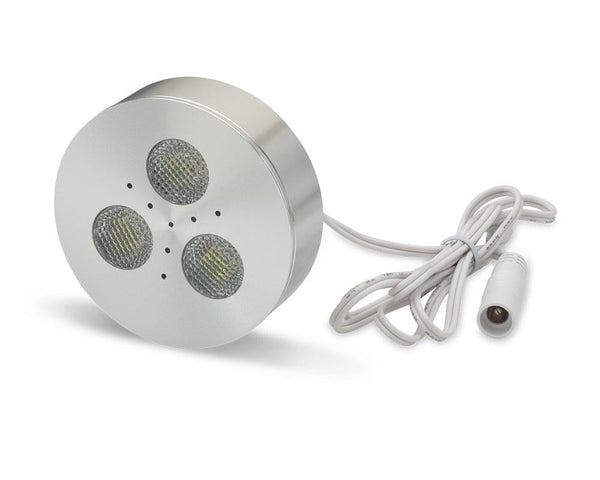

2-Pack 3 Watt Dimmable Under Cabinet LED Light, Warm White, Energy Efficient. Reduced energy consumption by up to 80%. 2 year guarantee. Specifications: Power consumption: 3W Incandescent equivalent: 30W Luminous Flux: 270 Lm Beam Angle: 120 degrees Color: Warm White (3000K) Dimmable: Yes Diameter: 2.68in (68mm) Heigth: 0.83in (21mm) Certifications: Rohs Includes: 2 x Puck Lights 1 x UL Certified Power Adapter with US plug 1 x 2-way LED Cable splitter 1 x DC 12V Rotary Dimmer Switch

3-Pack 3 Watt Dimmable Under Cabinet LED Light, Warm White, Energy Efficient. Reduced energy consumption by up to 80%. 2 year guarantee. Specifications: Power consumption: 3W Incandescent equivalent: 30W Luminous Flux: 270 Lm Beam Angle: 120 degrees Color: Warm White (3000K) Dimmable: Yes Diameter: 2.68in (68mm) Heigth: 0.83in (21mm) Certifications: Rohs Includes: 3 x Puck Lights 1 x UL Certified Power Adapter with US plug 1 x 3-way LED Cable splitter 1 x DC 12V Rotary Dimmer Switch

2-Pack 3 Watt Dimmable Under Cabinet LED Light, LED puck lights adopt high quality Edison LED as the light source. Beautiful appearance with fashionable structure. Surface mounted, Energy Efficient. Reduced energy consumption by up to 80%. 2 year guarantee.
