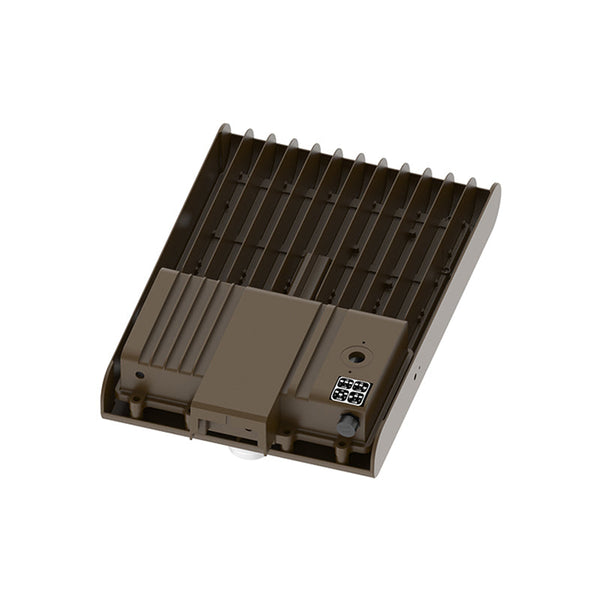

The CLMAL series is a group of premium architectural multi-purpose LED area luminaires designed to illuminate parking areas, pathways, building facades, loading docks, and a wide variety of other large, general site lighting applications. Multiple mounting options make the CLMAL a versatile luminaire for flood lighting, pole-, ground- and wall-mounted are lighting, and other outdoor lighting requirements.

 FEATURES
• Available in 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide 372,000 hours of operation with at least 70% of initial lumen output (L70).**
• Available models provide from 27,944 to 36,542 lumens, and from 117 to 131 lumens per watt (LPW).*
• IES roadway photometric distributions include types II-V.
• NEMA floodlight distributions include very narrow (3H x 3V), medium narrow (4H x 4V), medium wide (5H x 5V) & very wide (7H x 7V).
• Universal 120-277 AC voltage (50-60Hz) is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index > 80.
• Optional glare shields (full & half) & wire guards are available.
• Optional NEMA photocell installation kit provides watertight photocell attachment to driver enclosure clover.
• Die cast aluminum housing with durable, dark bronze powder coat finish—at least 2 mils thick on all surfaces—and a heat-resistant polycarbonate lens.
• Driver enclosure is sealed with a water-tight, silicone rubber gasket.
• Effective projected areas (EPA’s) are:
- Front = 0.33 square feet
- Side = 0.49 square feet
- Face = 2.14 square feet
• Easy installation in new construction or retrofit applications.

* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours.

 WARRANTY & LISTINGS
▪ cULus listed for wet locations in ambient temperatures from - 20°C to 45°C (-4°F to 113°F)
▪ IP66 rated for ingress protection
▪ DLC premium approved
▪ Flicker-free per IEEE1789-2015 (no observable adverse effects of flicker at 100% light output level)
▪ Rated for 3G vibration
▪ Lens is IK 9 rated for protection from external impacts
▪ Salt fog tested for 1,000 hours (ASTM B117). After salt fog testing, paint rated at 9 per ASTM D1654-05 scratch test
▪ Complies with FCC Part 15, class B
▪ Complies with EN61000-4-5, surge immunity protection (6kV)
▪ 5-Year Warranty of all electronics and housing

Specification Sheet

Selectable LED GLASS WALL PACK LED Lighting Series can be widely used for indoor or outdoor lighting (Wet Location). Excellent for museums, art galleries, shopping malls, office buildings, walls and many other applications.


Power: 28W / 42W / 56W / 70W
Input: AC 120-277V
CCT: 3000K /4000K / 5000K
Output: 4800 LM/6393 LM/7880 LM/9808 LM

Factory Default Parameters:
Power: 70W
CCT: 4000K
Light Source: 2835 LEDs
Driver: KERHAM

Selectable LED Architectural Wall Pack Lighting series can be widely used in indoor or outdoor lighting (wet location). Excellent for museums, art galleries, shopping malls, office buildings, walls and many other applications.

**12Vdc Auxiliary Dimming**


Power: 28W / 42W / 56W / 70W
Input: AC 277- 480V
CCT: 3000K / 4000K / 5000K
Output: 4760 LM/6880 LM/8601 LM/11124 LM
Type of lighting： T3 / T4 / T5

Factory Default Parameters:
Power: 70W
CCT：4000K
Type of lighting: T4
Driver: KERHAM

Selectable LED Architectural Wall Pack Lighting series can be widely used in indoor or outdoor lighting (wet location). Excellent for museums, art galleries, shopping malls, office buildings, walls and many other applications.

**12Vdc Auxiliary Dimming**

Power: 28W / 42W / 56W / 70W
Input: AC 120-277V
CCT: 3000K / 4000K / 5000K
Output: 4760 LM/6880 LM/8601 LM/11124 LM
Type of lighting： T3 / T4 / T5

Factory Default Parameters:
Power: 70W
CCT：4000K
Type of lighting: T4
Driver: KERHAM

The Selectable Semi-Cutoff Wall Pack LED Lighting Series can be widely used for Indoor or Outdoor (Wet Location) Excellent for Museums, Art Galleries, Shopping Malls, Office Buildings, Walls and many other applications.

Power: 28W / 42W / 56W / 70W
Input: AC 120-277V
CCT: 3000K/ 4000K / 5000K
Output:  4483 LM / 5896  LM
               7740 LM / 9753 LM

Factory Default Parameters:
Power: 70W
CCT: 4000K
Light Source: 2835 LEDs
Driver: KERHAM

The CLHB-LF-135 is a full-body, premium-performance LED high bay luminaire. It is designed to illuminate a wide variety of settings, including commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a painted, steel housing, the CLHB-LF-135 provides durability and high performance. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID high bays.

The CLLS series is a group of 2’, 3’, 4’ and 8’ covered strip lights, which are designed as direct replacements for fluorescent strips. The CLLS series is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.

FEATURES
• Available in 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide up to 122,000 hours of operation with at least 70% of initial lumen output (L70).**
• Uniform illumination with no visible LED pixilation
• Universal 120-277 AC voltage (50-60Hz) is standard
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%
• Color rendering index > 80.
• Steel housing and acrylic lens.
• Easy installation in new construction or retrofit.

 * contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours.

 WARRANTY/LISTING
• cULus approved for damp locations (-20°C to 50°C / -4°F to 122°F).
• DLC premium approved.
• Complies with RoHS (Restriction on Hazardous Substances) requirements.
• Complies with FCC Part 15 class A.
• Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
• Complies with IEEE 61000-4-2 level 2 (4kV) electrostatic discharge (ESD).

Specification Sheet

The CLLSH series is a group of 2’, 3’, 4’ and 8’ slim strip lights, which are designed as direct replacements for fluorescent strips. The CLLSH series is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.

FEATURES
• CLLSH2 provides 2,582 luminaire lumens
(129 lumens per watt, LPW) at 3500k; 2,592 luminaire
lumens (130 LPW) at 4000k; and 2,613 luminaire lumens (131 LPW) at 5000k.*
• CLLSH3 provides 3,138 luminaire lumens
(126 LPW) at 3500k; 3,154 luminaire lumens (126 LPW) at 4000k; and 3,186 luminaire lumens (127 LPW) at 5000k.*
• CLLSH4 provides 4,278 luminaire lumens (130
LPW) at 3500k; 4,313 luminaire lumens (131 LPW) at
4000k; and 4,382 luminaire lumens (133 LPW) at 5000k.*
• CLLSH8 provides 8,129 luminaire lumens (131 LPW) at 3500k; 8,131 luminaire lumens (131 LPW) at
4000k; and 8,135 luminaire lumens (131 LPW) at 5000k.*
• Uniform illumination with no visible LED pixelation.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.

 * contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours.

 WARRANTY/LISTING
• cETLus listed for damp locations in ambient temperatures from 20°C to 50°C (-4°F to 122°F).
• DLC premium approved.
• Flicker-free per IEEE1789-2015 (low risk of adverse effects of flicker at 100% light output level).
• Complies with FCC Part 15, Class B (except for
CLLSH8, which has Class A compliance).
• Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
• Complies with RoHS (Restriction on Hazardous
Substances) requirements.
• 5-Year Warranty of all electronics and housing.

Specification Sheet

Ultra-thin, back-lit LED panel designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and retail stores. Perfect choice for new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10VDC dimming capability.

 FEATURES

 WARRANTY/LISTINGS

 MOUNTING KITS

 DLC Approval is Required for Most Rebate Programs:

Field selectable 3500k (warm/neutral white), 4000k (neutral
white), & 5000k (cool white) color temperatures.*
▪ Long-life LEDs provide 144,000 hours of operation with at
least 70% of initial lumen output (L70), and 44,000 hours with at
least 90% of initial lumen output (L90).**
▪ Selectable lumen outputs range from 2,700 to 4,000 nominal
lumens.*
▪ Uniform illumination with no visible LED pixilation.
▪ Universal 120-277 AC voltage (50-60Hz) is standard.
▪ 0-10vdc dimming drivers are standard.
▪ Power factor > 90.
▪ Total harmonic distortion < 20%.
▪ Color rendering index > 80.
▪ Aluminum frame and steel housing backplate.
▪ PMMA (polymethyl methacrylate) LED lenses for optimal light
distribution, efficiency and longevity.
▪ Easy installation in new construction or retrofit.
▪ Standard earthquake clips provide secure installation in grid
ceilings.
▪ Optional emergency drivers are available.
▪ Standard mounting options include recessed mounting in grid
ceilings, or suspended mounting using attached hanging
brackets. For mounting in plaster or other hard ceiling, see
Mounting Kits.

The premium-performance CLTR22N is a 2’ x 2’ LED center basket luminaire, which offers industry-leading lumens per watt (LPW), and which is DLC Premium listed. The CLTR22N is designed as a direct replacement for 2’ x 2’ fluorescent luminaires installed in grid ceilings. It is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.

FEATURES

• Available in 3000k (warm white), 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide 81,000 hours of operation with at least 70% of initial lumen output (L70).**
• Provides 3,709 luminaire lumens (124 lumens per watt, LPW) at 3000k, 3,766 luminaire lumens (126 LPW) at 4000k, and 3,823 luminaire lumens (128 LPW) at 5000k.*
• Uniform illumination with no visible LED pixelation.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%.
• Color rendering index > 80.
• Steel housing and acrylic lens.
• Easy installation in new construction or retrofit. Fits in standard 2’ x 2’ grid ceilings.
• Standard earthquake clips provide secure installation in grid
ceilings.
*Contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours.

WARRANTY/LISTING

• UL listed for damp locations and insulated ceilings (IC-rated) for use in ambient temperatures from -25°C to 50°C (-13°F to 122°F).
• DLC Premium listed.
• Complies with FCC Part 15, class B.
• 5-year warranty of all electronics and housing.

Specification Sheet

The premium-performance CLTR22D-32 is a low-profile 2’ x 2’ LED center basket luminaire, which offers industry-leading lumens per watt (LPW). The CLTR22D-32 is designed as a direct replacement for 2’ x 2’ fluorescent luminaires installed in grid or plaster ceilings. It is also designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.

FEATURES

▪ Available in 3000k (warm white), 3500k (warm/neutral white), 4000k (neutral white) & 5000k (cool white) color temperatures.*
▪ Long-life LEDs provide 199,000 hours of operation with at least 70% of initial lumen output (L70).**
▪ Provides 4,195 luminaire lumens (131 lumens per watt, LPW) at 3000k; 4,293 luminaire lumens (134 LPW) at 3500k; 4,371
luminaire lumens (137 LPW) at 4000k; and 4,527 luminaire lumens (141 LPW) at 5000k.*
▪ Uniform illumination with no visible LED pixelation.
▪ Universal 120-277 AC voltage (50-60Hz) is standard.
▪ 0-10vdc dimming capability is standard.
▪ Power factor > 0.90.
▪ Total harmonic distortion < 20%.
▪ Color rendering index > 80.
▪ Steel housing and acrylic lens.
▪ Easy installation in new construction or retrofit. Fits in standard 2’ x 2’ grid ceilings.
▪ Standard earthquake clips provide secure installation in grid ceilings.
▪ Standard mounting options include recessed mounting in grid ceilings, or suspended mounting using attached hanging brackets.

* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours

WARRANTY & LISTINGS

▪ UL listed for damp locations and insulated ceilings (IC-rated) for use in ambient temperatures from -20°C to 40°C (-4°F to 104°F).
▪ DLC Premium listed.
▪ Flicker-free per IEEE1789-2015 (low risk of adverse effects of flicker at 100% light output level).
▪ Complies with RoHS (Restriction on Hazardous Substances) requirements.
▪ Complies with FCC Part 15, part B.
▪ Complies with IEEE C.62.41-1991, input transient surge protection (2kV).
▪ 5-year warranty of all electronics and housing.

Specification Sheet

The premium-performance CLTR24N-40 is a 2’ x 4’ LED center basket luminaire, which offers industry-leading lumens per watt (LPW), and which is DLC Premium listed. The CLTR24N-40 is designed as a direct replacement for 2’ x 4’ fluorescent luminaires installed in grid ceilings. It is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10 vdc dimming capability.

FEATURES

▪ Available in 3000k (warm white), 3500k (warm/neutral white), 4000k (neutral white) & 5000k (cool white) color temperatures.*
▪ Long-life LEDs provide 199,000 hours of operation with at least 70% of initial lumen output (L70).**
▪ Provides 5,680 luminaire lumens (129 lumens per watt, LPW) at 3000k; 5,743 luminaire lumens (131 LPW) at 3500k; 5,794
luminaire lumens (132 LPW) at 4000k; and 5,894 luminaire lumens (134 LPW) at 5000k.*
▪ Uniform illumination with no visible LED pixelation.
▪ Universal 120-277 AC voltage (50-60Hz) is standard.
▪ 0-10vdc dimming capability is standard.
▪ Power factor > 0.90.
▪ Total harmonic distortion < 20%.
▪ Color rendering index > 80.
▪ Steel housing and acrylic lens.
▪ Easy installation in new construction or retrofit. Fits in standard 2' x 4' grid ceilings.
▪ Standard earthquake clips provide secure installation in grid ceilings.
▪ Standard mounting options include recessed mounting in grid ceilings, or suspended mounting using attached hanging brackets.

* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours

WARRANTY & LISTINGS

▪ UL listed for damp locations and insulated ceilings (IC-rated) for use in ambient temperatures from -20°C to 40°C (-4°F to 104°F).
▪ DLC Premium listed.
▪ Flicker-free per IEEE 1789-2015 (low risk of adverse effects of flicker at 100% light output level).
▪ Complies with RoHS (Restriction on Hazardous Substances) requirements.
▪ Complies with FCC Part 15, part B.
▪ Complies with IEEE C.62.41-1991, input transient surge protection (2kV).
▪ 5-year warranty of all electronics and housing.

Specification Sheet

UL-listed, ROHS - Easy installation: comes with E26 base adapter, fits most 3" metal cans for retro-fit installation 50 Watt Halogen Equivalency. - Wet Locations (Could be used outdoor and indoors) - Dimmable: compatible with most LED dimmers, using an internal driver, no external ballast or starter needed

Specification Sheet

3" LED Square Baffle Retrofit kit. It is compatible with most 3” recessed standard housings. Ideal for both remodel or new construction applications. The retrofit kit comes with a disconnect screw-in base lead for easy installation into standard incandescent sockets.

• White painted Diecast body is appropriate for heat dissipation.
• Oversized trim ring constructed from one-piece diecast
• 3 Tension clips pre-installed on unit for easy installation
• E26 medium screw-base Edison connector provides easy retrofit of incandescent housings.
• 9W - 470 Lumens
• Protected LED driver performs at 120V
• Dimming down to 5% with most dimmers.
• CRI >80 or >90
• cULus classified
• Energy star qualified
• Title 24 compliant
• Wet locations (Not suitable for coastal/salt water area)
• Damp Locations
• RoHS compliances
• Tested in accordance with IESNA LM79 & LM80
• Dimensions - 4 3/8" x 2 3/4"

Specification Sheet

3" LED Baffle Retrofit kit. It is compatible with most 3” recessed standard housings. Ideal for both remodel or new construction applications. The retrofit kit comes with a disconnect screw-in base lead for easy installation into standard incandescent sockets.

• White painted Diecast body is appropriate for heat dissipation.
• Oversized trim ring constructed from one-piece diecast
• 3 Tension clips pre-installed on unit for easy installation
• E26 medium screw-base Edison connector provides easy retrofit of incandescent housings.
• 9W - 470 Lumens
• Protected LED driver performs at 120V
• Dimming down to 5% with most dimmers.
• CRI >80 or >90
• cULus classified
• Energy star qualified
• Title 24 compliant
• Wet locations (Not suitable for coastal/salt water area)
• Damp Locations
• RoHS compliances
• Tested in accordance with IESNA LM79 & LM80
• Dimensions - 4 3/8" x 2 3/4"

Specification Sheet

The CLLS series is a group of 2’, 3’, 4’ and 8’ covered strip lights, which are designed as direct replacements for fluorescent strips. The CLLS series is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.

FEATURES
• Available in 3500k (warm/neutral white), 4000k (neutral white) and 5000k (cool white) color temperatures.*
• Long-life LEDs provide up to 122,000 hours of operation with at least 70% of initial lumen output (L70).**
• Uniform illumination with no visible LED pixilation
• Universal 120-277 AC voltage (50-60Hz) is standard
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.
• Total harmonic distortion < 20%
• Color rendering index > 80.
• Steel housing and acrylic lens.
• Easy installation in new construction or retrofit.

 * contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours.

 WARRANTY/LISTING
• cULus approved for damp locations (-20°C to 50°C / -4°F to 122°F).
• DLC premium approved.
• Complies with RoHS (Restriction on Hazardous Substances) requirements.
• Complies with FCC Part 15 class A.
• Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
• Complies with IEEE 61000-4-2 level 2 (4kV) electrostatic discharge (ESD).

Specification Sheet

The CLLSH series is a group of 2’, 3’, 4’ and 8’ slim strip lights, which are designed as direct replacements for fluorescent strips. The CLLSH series is designed to deliver general ambient lighting in a variety of indoor settings, including schools, offices, hospitals and stores, and is the perfect choice for both new construction and retrofits. This high-efficacy luminaire provides long-life and uniform illumination, as well as standard 0-10vdc dimming capability.

FEATURES
• CLLSH2 provides 2,582 luminaire lumens
(129 lumens per watt, LPW) at 3500k; 2,592 luminaire
lumens (130 LPW) at 4000k; and 2,613 luminaire lumens (131 LPW) at 5000k.*
• CLLSH3 provides 3,138 luminaire lumens
(126 LPW) at 3500k; 3,154 luminaire lumens (126 LPW) at 4000k; and 3,186 luminaire lumens (127 LPW) at 5000k.*
• CLLSH4 provides 4,278 luminaire lumens (130
LPW) at 3500k; 4,313 luminaire lumens (131 LPW) at
4000k; and 4,382 luminaire lumens (133 LPW) at 5000k.*
• CLLSH8 provides 8,129 luminaire lumens (131 LPW) at 3500k; 8,131 luminaire lumens (131 LPW) at
4000k; and 8,135 luminaire lumens (131 LPW) at 5000k.*
• Uniform illumination with no visible LED pixelation.
• Universal 120-277 AC voltage (50-60Hz) is standard.
• 0-10vdc dimming capability is standard.
• Power factor > 0.90.

 * contact factory for other color temperatures and lumen packages.
**L70 hours are IES TM-21-11 calculated hours.

 WARRANTY/LISTING
• cETLus listed for damp locations in ambient temperatures from 20°C to 50°C (-4°F to 122°F).
• DLC premium approved.
• Flicker-free per IEEE1789-2015 (low risk of adverse effects of flicker at 100% light output level).
• Complies with FCC Part 15, Class B (except for
CLLSH8, which has Class A compliance).
• Complies with IEEE C.62.41-1991, Class A input transient surge protection (2.5kV).
• Complies with RoHS (Restriction on Hazardous
Substances) requirements.
• 5-Year Warranty of all electronics and housing.

Specification Sheet

The CLADL series is a 4” commercial grade architectural downlight (includes can & frame-in kit). Built for commercial use with architectural frames and a deep cone reflector for precision light. This high-efficiency luminaire provides long life and minimal need for maintenance. UL and Energy Star listed.

 FEATURES
• Architectural frames
• C channel and flat hanger bars for tie down to ceiling grids
• Junction box is mounted on the frame for easy wiring,driver access for installation, and replacement
• Diecast aluminum heatsink dissipates heat from the LED board
• Self-flanged aluminum reflector with a frosted lens to shield direct view of LEDs
• Color rendering index ≥ 80
• Long life LEDs - up to 50,000 hours
• Universal 120-277 AC voltage (50/60Hz)
• 0-10V dimming
• Operation Temp. -30°C~40°C (-22°F~104°F)

* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours.

 WARRANTY & LISTINGS
• cULus Listed.
• ENERGY STAR® rated.
• Suitable for wet locations (not suitable for coastal/saltwater areas).
• Suitable for damp locations.
• RoHS compliant.
• 5-year warranty of all electronics and housing.

 Specification Sheet

• INSTANT SAVINGS - Reduce your electricity usage with an LED light panel that only uses 36W of power
• HIGH EFFICIENCY Each 2 x 2 FT panel LED light fixture provides optimal lighting with 4000 lumens
• Dimmable - Take control of your lighting needs with the ability to reduce from 100% to 10% lighting output
• REBATE ELIGIBLE - Get a return on investment with our 2x2 troffer LED panel lights which are DLC Listed!
• COLOR TEMPERATURE - 3500K
• SPECIFICATIONS - 36W, 4000 Lumens, 24x24 IN Flat Panel LED Light, Dimmable 0-10V, 120° Beam Angle, Direct Wiring, UL Listed, DLC Listed, Rectangle Ceiling Light, 50,000 Hour Lifetime, 5-YEAR WARRANTY

Spec Sheet

We offer quantity discounts. Please inquire : sales@ledquant.com

• INSTANT SAVINGS - Reduce your electricity usage with an LED light panel that only uses 55W of power
• HIGH EFFICIENCY Each 2 x 4 FT panel LED light fixture provides optimal lighting with 7000 lumens
• Dimmable - Take control of your lighting needs with the ability to reduce from 100% to 10% lighting output
• REBATE ELIGIBLE - Get a return on investment with our 2x4 troffer LED panel lights which are DLC Premium Listed!
• SPECIFICATIONS - 55W, 3500K (Natural White), 7000 Lumens, 24x48 IN Flat Panel LED Light, Dimmable 0-10V, 120° Beam Angle, Direct Wiring, UL Listed, DLC Listed, Rectangle Ceiling Light, 144,000 Hour Lifetime, 10-YEAR WARRANTY

Spec Sheet

We offer quantity discounts. Please inquire : sales@ledquant.com

LEDQuant's M24V-40W-DC is one of the most compact LED drivers on the market with a magnetic transformer core. It is equipped with auto-reset breakers, one on the input and one on the output, which protect both the load and driver. The driver is encased in a coated metal box that includes 2 knock-outs on the bottom to enable easy installation that complies with electrical code requirements.

Selectable LED Slim Adjustable Wall Pack series can be widely used in indoor or outdoor lighting (wet location). The head tilts from 0º to 90º. Ideal for mechanical or electronic processing workshops, storage warehouses, steel mills, gas stations, toll booth, waiting rooms, the platforms of railway station, indoor stadiums.

** Photocell control available (Standard)**
** 1-10V Dimming**

Power: 40W / 60W / 80W
Input: AC 120-277V
CCT: 3000K/4000K/5000K
Output: 10000LM/11200LM/10800LM
Light Source: Lumileds
Driver: Daermay

Factory Default Parameters:
Power:80W
CCT：4000K

Adjustable WALL PACK LED Lighting Series can be widely used for indoor and outdoor lighting (Wet Location). Excellent for museums, art galleries, shopping malls, office buildings, walls and many other applications.


Power: 45W
Input: AC 120-277V
CCT：5000K
Output: 5895 Lm
Light Source: Lumileds
Driver: KERHAM

LED Semi Cutoff WALL PACK Lighting series can be widely used as indoor or outdoor lighting (Wet location). Perfect for mechanical or electronic processing workshops, storage warehouses, steel mills, gas stations, toll booth, waiting rooms, the platforms of railway station, indoor stadiums and flower cultivating tents, etc.

Power: 45W
Input: AC 120-277V
CCT：5000K
Output: 6651 LM
Light Source: Lumileds
Driver: OWN

Selectable LED GLASS WALL PACK LED Lighting Series can be widely used for indoor or outdoor lighting (Wet Location). Excellent for museums, art galleries, shopping malls, office buildings, walls and many other applications.

Power: 48W / 72W / 96W / 120W
Input: AC 120-277V
CCT: 3000K /4000K / 5000K
Output: 6990 LM / 10447 LM
13422 LM / 16767LM

Factory Default Setup:
Power: 120W
CCT: 4000K
Light Source: 2835 LEDs
Driver: KERHAM

Selectable LED Architectural Wall Pack Lighting series can be widely used in indoor or outdoor lighting (wet location). Excellent for museums, art galleries, shopping malls, office buildings, walls and many other applications.

12Vdc Auxiliary Dimming

Power: 48W / 72W / 96W / 120W
Input: AC 120-277V
CCT: 4000K / 5000K
Output: 7800 LM/11288 LM/14627 LM/18550 LM
Type of lighting： T3 / T4 / T5

Factory Default Parameters:
Power: 120W
CCT：4000K
Type of lighting: T4
Driver: KERHAM

The Selectable Semi-Cutoff Wall Pack LED Lighting Series can be widely used for Indoor or Outdoor (Wet Location) Excellent for Museums, Art Galleries, Shopping Malls, Office Buildings, Walls and many other applications.

Power: 48W / 76W / 92W / 120W
Input: AC 120-277V
CCT: 4000K / 5000K
Output: 7496LM / 10985 LM
            14162 LM / 17226 LM

Factory Default Parameters:
Power: 120W
CCT: 4000K
Light Source: 2835 LEDs
Driver: KERHAM
