commercial recessed lights

Economy 5” & 6” Recessed downlight retrofit solution with integrated LED power supply and thermal management system combined in a single compact unit designed to fit most standard 5” & 6” recessed cans.

FEATURES Long life LEDs with up to 50,000 hours at 70% lumen maintenance. Choice of 2700K, 3000K, 4000K or 5000K color temperatures with 80 CRI Produces 800-860 lumens output from luminaire Uses 1.18W high power, high quality LEDs Dimmable to 10% with most dimmers Save 75% compared to incandescent sources High efficiency driver with a power factor ≥.90 with input power of 120V, 50-60Hz

ELECTRICAL Built-in LED Driver Power consumption of 12 watts Operation temperature of -20°C -40°C (-4°F- 104°F)

MOUNTING Easy installation with adjustable torsion spring Torsion spring is designed to fit into 5” or 6” housing automatically without changing mounting tab No tools required for installation * Contact factory for other color temperatures and lumen packages. ** L70 hours are IES TM-21-11 calculated hours.

WARRANTY & LISTINGS Tested in accordance with IESNA LM79 & LMB0 ETL Listed for wet location ENERGY STAR qualified Passes FCC Class B 5-year warranty on all electronics and housing

HOUSING Compatible with most 5” and 6” housings Compatible with insulated, non-insulated, and air-tight ceilings Durable thermoplastic construction E26 medium screw-base Edison connector provides easy retrofit of incandescent housings 6" square baffle snap-in (optional)

Specification Sheet

Easy installation: comes with E26 base adapter, fits most 4" metal cans for retro-fit installation • CONSERVE ENERGY: Using LEDQuant LED Recessed Lighting Retrofit can reduce energy use by as much as 90%. Improving energy efficiency can reduce emissions. Super BRIGHT light, SAVES energy, and LOWERS electric costs: 10W (65W Halogen Equivalency), LASTS over 35 years, SAVES $303 per lamp! • CERTIFICATION: ETL-LISTED and ENERGY STAR qualified, ROHS, and Meets T24 Requirements. Most states will not allow electricians or home owners to install LED lighting products that have not been tested by a certification laboratory. This ETL LISTED LED bulb meets all regulatory requirements. The ETL CERTIFICATION is indication of a superior quality product that has passed numerous tests before getting its approval. ENERGY STAR listed meets strict efficiency, quality, and lifetime criteria. • BUY WITH CONFIDENCE: 5 YEAR WARRANTY. Reduce re-lamp frequency. Lifespan over 50,000 hours. One of the highest standard retrofits on the market; Preferred by most contractors and electricians. Guaranteed to have adhered the most demanding quality control procedures. EXCELLENT PERFORMANCE

Specification Sheet

CALIFORNIA JA8 - 5/6" LED RECESSED RETROFIT TRIM - 16W ***Meets State of California Title 24 & JA8 requirements*** Economy 5” & 6” Recessed downlight retrofit solution with integrated LED power supply and thermal management system combined in a single compact unit designed to fit most standard 5” & 6” recessed cans.

FEATURES Long life LEDs with up to 50,000 hours at 70% lumen maintenance. Choice of 2700K, 3000K, 4000K or 5000K color temperatures with 80 CRI Produces 800-860 lumens output from luminaire Uses 1.18W high power, high quality LEDs Dimmable to 10% with most dimmers Save 75% compared to incandescent sources High efficiency driver with a power factor ≥.90 with input power of 120V, 50-60Hz

ELECTRICAL Built-in LED Driver Power consumption of 16 watts Operation temperature of -20°C -40°C (-4°F- 104°F) Easy installation with adjustable torsion spring Torsion spring is designed to fit into 5” or 6” housing automatically without changing mounting tab No tools required for installation * Contact factory for other color temperatures and lumen packages. ** L70 hours are IES TM-21-11 calculated hours.

WARRANTY & LISTINGS Tested in accordance with IESNA LM79 & LMB0 ETL Listed for wet location ENERGY STAR qualified Passes FCC Class B 5-year warranty on all electronics and housing.

HOUSING Compatible with most 5” and 6” housings Compatible with insulated, non-insulated, and air-tight ceilings Durable thermoplastic construction E26 medium screw-base Edison connector provides easy retrofit of incandescent housings 6" square baffle snap-in (optional)

Specification Sheet

Energy efficient LED Flat Square Retrofit kit provides quick and easy installation with no can required. Durable powder-coated diecast trim with enclosed J-box is attached with a water-tight connection. Pre-installed plastic clips included.

 FEATURES
▪ 120V Dimmer standard, 50/60Hz.
▪ Dimmable down to 5% with most market dimmers.
▪ Use for recessed applications with drywall or drop tile ceilings (no recessed can needed).
▪ Small, lightweight J-box standard.
▪ Long life, 50,000 hour LEDs.
▪ -30°C ~ 40°C (-22°F ~ 104°F) operating temperature.

Specification Sheet

2" LED Square Baffle Retrofit kit. It is compatible with most 2” recessed standard housings. Ideal for both remodel or new construction applications. The retrofit kit comes with a disconnect screw-in base lead for easy installation into standard incandescent sockets.

• White painted Diecast body is appropriate for heat dissipation.
• Oversized trim ring constructed from one-piece diecast
• 3 Tension clips pre-installed on unit for easy installation
• E26 medium screw-base Edison connector provides easy retrofit of incandescent housings.
• 9W - 470 Lumens
• Protected LED driver performs at 120V
• Dimming down to 5% with most dimmers.
• CCT 2700K, 3000K, 4000K, 5000K available
• CRI >80 or >90
• cULus classified
• Energy star qualified
• Title 24 compliant
• We locations (Not suitable for coastal/salt water area)
• Damp Locations
• RoHS compliances
• Tested in accordance with IESNA LM79 & LM80
• Dimensions - 3 1/8" x 2 5/8"

Specification Sheet

2" LED Baffle Retrofit kit. It is compatible with most 2” recessed standard housings. Ideal for both remodel or new construction applications. The retrofit kit comes with a disconnect screw-in base lead for easy installation into standard incandescent sockets.

• White painted Diecast body is appropriate for heat dissipation.
• Oversized trim ring constructed from one-piece diecast
• 3 Tension clips pre-installed on unit for easy installation
• E26 medium screw-base Edison connector provides easy retrofit of incandescent housings.
• 9W - 470 Lumens
• Protected LED driver performs at 120V
• Dimming down to 5% with most dimmers.
• CRI >80 or >90
• cULus classified
• Energy star qualified
• Title 24 compliant
• We locations (Not suitable for coastal/salt water area)
• Damp Locations
• RoHS compliances
• Tested in accordance with IESNA LM79 & LM80
• Dimensions - 4 3/8" x 2 3/4"

Specification Sheet

4" Gimbal solution with integrated LED power supply and thermal management system combined in a single compact unit designed to fit most standard 4" recessed cans.

ILLUMINATION Long life LEDs with up to 50,000 hours at 70% lumen maintenance. Choice of 2700K, 3000K, 4000K and 5000K color temperature with 80 CRI. Produces 675-750 lumens output from luminaire. Uses 1.18W high power, high quality LEDs.

ELECTRICAL Dimmable to 10% with most dimmers. Save 75% compared to incandescent sources. High efficiency driver with a power factor ≥.90 with input power of 120V, 50-60Hz. Built-in LED Driver. Power consumption of 10 watts. Operation temperature of -20°C - 40°C (-4°F - 104°F).

MOUNTING Easy installation with integral clips. No tools required for installation.

HOUSING Compatible with most 4“ housings. Compatible with insulated, non-insulated, and air-tight ceilings. Durable thermoplastic construction. E26 medium screw-base Edison connector provides easy retrofit of incandescent housings.

WARRANTY/LISTING Tested in accordance with IESNA LM79 & LM80. ETL Listed for wet location. Energy Star qualified. Passes FCC Class B. Meets State of California Title 24 requirements. Five year warranty on all electronics and housing.

Specification Sheet

2" LED Square Adjustable Gimbal Retrofit kit. It is compatible with most 2” recessed standard housings. Ideal for both remodel or new construction applications. The retrofit kit comes with a disconnect screw-in base lead for easy installation into standard incandescent sockets.

• White painted Diecast body is appropriate for heat dissipation.
• Oversized trim ring constructed from one-piece diecast
• 3 Tension clips pre-installed on unit for easy installation
• E26 medium screw-base Edison connector provides easy retrofit of incandescent housings.
• 9W - 470 Lumens
• Protected LED driver performs at 120V
• Dimming down to 5% with most dimmers.
• CCT 2700K, 3000K, 4000K, 5000K available
• CRI >80 or >90
• cULus classified
• Energy star qualified
• Title 24 compliant
• Wet locations (Not suitable for coastal/salt water area)
• Damp Locations
• RoHS compliances
• Tested in accordance with IESNA LM79 & LM80
• Dimensions - 3 1/8" x 2 5/8"

Specification Sheet

LED-GIMBAL-PRO Series lights are bright, energy efficient and elegantly designed. They are an ideal solution for commercial and residential applications requiring compact shape, superior quality and visual aesthetics. This 8W light produces 696-784Lm (depending on the CCT). At 1.77" tall and 2.48" round they can fit into tight spaces that a traditional recessed can light can't, such as ceilings with ductwork/piping/obstructions, hot-roof ceilings with limited vertical clearance, and tight soffits.  It comes in Black, White and Brushed Nickel Finishes. Each light can be set at 3000K, 4000K or 5000K CCT (Adjustable). These lights feature an easily adjustable LED face (Gimbal) that can be pointed straight downward, making them compatible with sloped ceilings. This product is ETL certified.

• Energy Consumption: 8W
• Input Voltage: 110-130 VAC
• Beam Angle: 40 Degrees
• Color Temperature: 3000K, 4000K or 5000K (Adjustable)

• Finish: Black, White or Brushed Nickel
• Dimmable: Yes

• Installation: Recessed mount
• Certifications: ETL, CE, RoHS
• Trim Diameter: 3.34in (85mm)
• Module/Body Diameter: 2.48" (63mm)
• Height: 1.77in (45mm)
• Junction Box Length: 4.25" (108mm)
• Junction Box Width: 2.4" (60mm)
• Junction Box Height: 1.33" (34mm)
• Cutout hole: 2 3/4" (70mm) to 2 7/8" (73mm)
• Lifespan: 39,000 hours
• Warranty: 5 years

Specification Sheet

LED-GIMBAL-PRO Series lights are bright, energy efficient and elegantly designed. They are an ideal solution for commercial and residential applications requiring compact shape, superior quality and visual aesthetics. This 8W light produces 696-784Lm (depending on the CCT). At 1.77" tall and 2.48" round they can fit into tight spaces that a traditional recessed can light can't, such as ceilings with ductwork/piping/obstructions, hot-roof ceilings with limited vertical clearance, and tight soffits.  It comes in Black, White and Brushed Nickel Finishes. Each light can be set at 3000K, 4000K or 5000K CCT (Adjustable). These lights feature an easily adjustable LED face (Gimbal) that can be pointed straight downward, making them compatible with sloped ceilings. This product is ETL certified.

• Energy Consumption: 8W
• Input Voltage: 110-130 VAC
• Beam Angle: 40 Degrees
• Color Temperature: 3000K, 4000K or 5000K (Adjustable)

• Finish: Black, White or Brushed Nickel
• Dimmable: Yes

• Installation: Recessed mount
• Certifications: ETL, CE, RoHS
• Trim Diameter: 4.72in (120mm)
• Module/Body Diameter: 2.48" (63mm)
• Height: 1.77in (45mm)
• Junction Box Length: 4.25" (108mm)
• Junction Box Width: 2.4" (60mm)
• Junction Box Height: 1.33" (34mm)
• Cutout hole: 2 3/4" (70mm) to 2 7/8" (73mm)
• Lifespan: 39,000 hours
• Warranty: 5 years

Specification Sheet

3" LED Square Baffle Retrofit kit. It is compatible with most 3” recessed standard housings. Ideal for both remodel or new construction applications. The retrofit kit comes with a disconnect screw-in base lead for easy installation into standard incandescent sockets.

• White painted Diecast body is appropriate for heat dissipation.
• Oversized trim ring constructed from one-piece diecast
• 3 Tension clips pre-installed on unit for easy installation
• E26 medium screw-base Edison connector provides easy retrofit of incandescent housings.
• 9W - 470 Lumens
• Protected LED driver performs at 120V
• Dimming down to 5% with most dimmers.
• CRI >80 or >90
• cULus classified
• Energy star qualified
• Title 24 compliant
• Wet locations (Not suitable for coastal/salt water area)
• Damp Locations
• RoHS compliances
• Tested in accordance with IESNA LM79 & LM80
• Dimensions - 4 3/8" x 2 3/4"

Specification Sheet

Energy efficient LED Flat Square Retrofit kit provides quick and easy installation with no can required. Durable powder-coated diecast trim with enclosed J-box is attached with a water-tight connection. Pre-installed plastic clips included.

 FEATURES
▪ 120V Dimmer standard, 50/60Hz.
▪ Dimmable down to 5% with most market dimmers.
▪ Use for recessed applications with drywall or drop tile ceilings (no recessed can needed).
▪ Small, lightweight J-box standard.
▪ Long life, 50,000 hour LEDs.
▪ -30°C ~ 40°C (-22°F ~ 104°F) operating temperature.

Specification Sheet

Energy efficient LED Flat Square Retrofit kit provides quick and easy installation with no can required. Durable powder-coated diecast trim with enclosed J-box is attached with a water-tight connection. Pre-installed plastic clips included.

 FEATURES
▪ 120V Dimmer standard, 50/60Hz.
▪ Dimmable down to 5% with most market dimmers.
▪ Use for recessed applications with drywall or drop tile ceilings (no recessed can needed).
▪ Small, lightweight J-box standard.
▪ Long life, 50,000 hour LEDs.
▪ -30°C ~ 40°C (-22°F ~ 104°F) operating temperature.

Specification Sheet

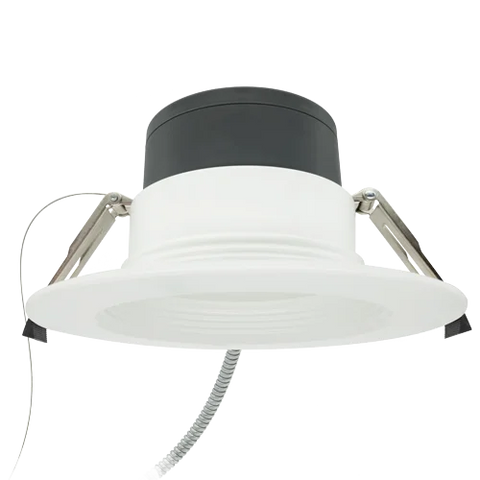

The CLADL series is a 4” commercial grade architectural downlight (includes can & frame-in kit). Built for commercial use with architectural frames and a deep cone reflector for precision light. This high-efficiency luminaire provides long life and minimal need for maintenance. UL and Energy Star listed.

 FEATURES
• Architectural frames
• C channel and flat hanger bars for tie down to ceiling grids
• Junction box is mounted on the frame for easy wiring,driver access for installation, and replacement
• Diecast aluminum heatsink dissipates heat from the LED board
• Self-flanged aluminum reflector with a frosted lens to shield direct view of LEDs
• Color rendering index ≥ 80
• Long life LEDs - up to 50,000 hours
• Universal 120-277 AC voltage (50/60Hz)
• 0-10V dimming
• Operation Temp. -30°C~40°C (-22°F~104°F)

* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours.

 WARRANTY & LISTINGS
• cULus Listed.
• ENERGY STAR® rated.
• Suitable for wet locations (not suitable for coastal/saltwater areas).
• Suitable for damp locations.
• RoHS compliant.
• 5-year warranty of all electronics and housing.

 Specification Sheet

The CLADL series is a 6” commercial grade architectural downlight (includes can & frame-in kit). Built for commercial use with architectural frames and a deep cone reflector for precision light. This high-efficiency luminaire provides long life and minimal need for maintenance. UL and Energy Star listed.

 FEATURES
• Architectural frames
• C channel and flat hanger bars for tie down to ceiling grids
• Junction box is mounted on the frame for easy wiring,driver access for installation, and replacement
• Diecast aluminum heatsink dissipates heat from the LED board
• Self-flanged aluminum reflector with a frosted lens to shield direct view of LEDs
• Color rendering index ≥ 80
• Long life LEDs - up to 50,000 hours
• Universal 120-277 AC voltage (50/60Hz)
• 0-10V dimming
• Operation Temp. -30°C~40°C (-22°F~104°F)

* Contact factory for other color temperatures and lumen packages.
** L70 hours are IES TM-21-11 calculated hours.

 WARRANTY & LISTINGS
• cULus Listed.
• ENERGY STAR® rated.
• Suitable for wet locations (not suitable for coastal/saltwater areas).
• Suitable for damp locations.
• RoHS compliant.
• 5-year warranty of all electronics and housing.

Specification Sheet
